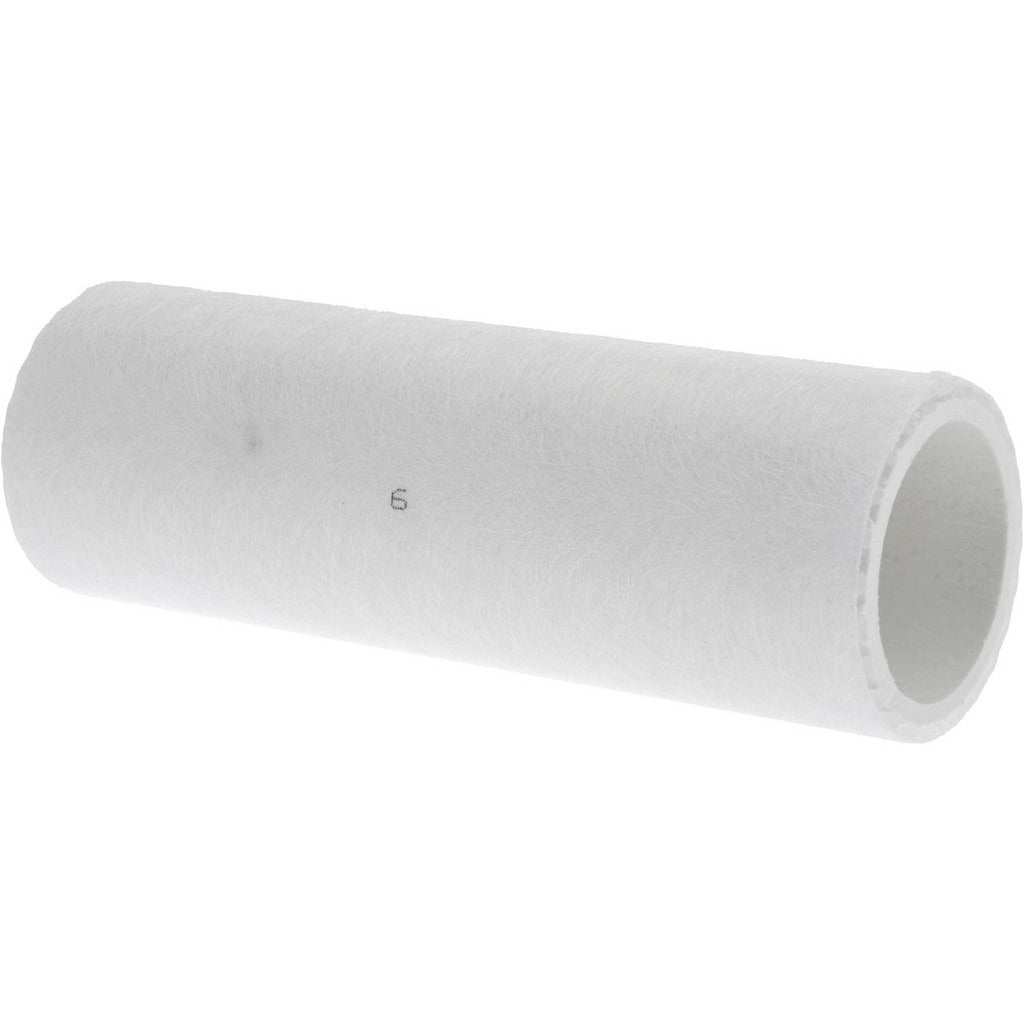

Parker 6C15-060 Coalescing Filter Element Kit 0.01 Micron

Product Description

The PARKER 6C15-060 is a coalescing filter element kit designed for use with Finite H-Series compressed air filtration systems. Built with a microglass filter media, this element captures sub-micron aerosols, liquid water, and oil mist down to 0.01 micron, protecting downstream equipment from contamination. It measures 1.5 inches in height and 6 inches in width, and is rated for airflow between 80 and 100 standard cubic feet per minute (SCFM). Installation is performed by licensed industrial air system technicians or journeyman pipefitters working on compressed air distribution lines.

This element kit fits Finite H-Series filter housings and is suited for industrial and commercial compressed air applications where high-efficiency liquid and aerosol removal is required. Typical installations include pneumatic control systems, spray finishing lines, and instrumentation supply circuits where clean, dry air is critical to equipment performance and product quality.

Key Features

• 0.01 micron filtration rating removes sub-micron oil aerosols and liquid water from compressed air streams
• Microglass filter media provides high-efficiency coalescing performance
• Rated for 80 to 100 SCFM airflow range
• Compact profile at 1.5 inches height by 6 inches width for drop-in replacement
• Sold as a kit — one element per package

Compatibility

Designed as a direct replacement element kit for Parker Finite H-Series compressed air filter housings.

Installation Notes

Shut down and depressurize the compressed air system completely before removing or installing filter elements. This type of element is typically serviced by trained pipefitters or industrial maintenance technicians familiar with compressed air system codes. Verify that the housing inlet and outlet are isolated and the system is at zero pressure before opening the housing. Follow applicable OSHA and local compressed air system maintenance guidelines during service.
