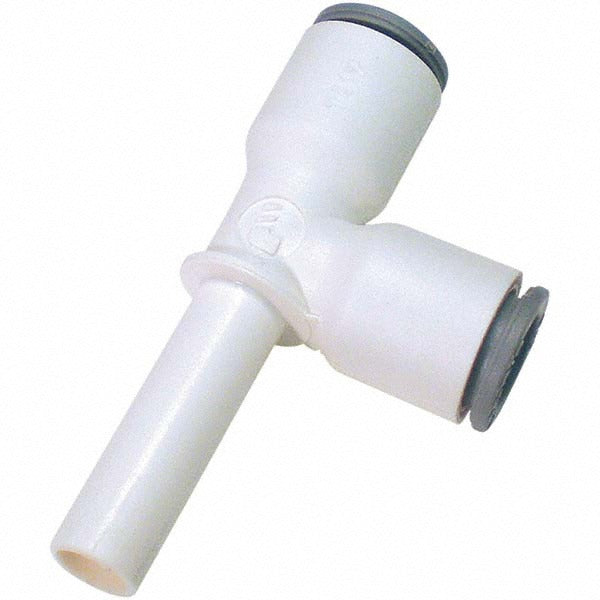

Parker 6383 60 00WP2 Push-to-connect Plug-in Run Tee

Product Description

The PARKER 6383 60 00WP2 is a push-to-connect plug-in run tee tube fitting designed for quick, tool-free branch connections in pneumatic and fluid tubing systems. Built from polymer construction, it accepts 3/8 inch OD tubing on all three ports and is rated to 230 psi. The plug-in mechanism allows technicians to insert tubing directly without additional fittings or ferrules, reducing assembly time on the job. This fitting is commonly installed by HVAC technicians, plumbers, and industrial maintenance pros working with instrument-grade or pneumatic tubing runs.

This plug-in run tee is suited for inline branch applications where two runs of 3/8 inch OD tubing need to be joined and a third line added off the same axis. It is appropriate for residential and light commercial pneumatic control lines, instrument air, and compatible fluid systems operating within the rated pressure range. Its compact polymer body keeps weight low and resists corrosion in environments where metal fittings may degrade.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion on all three ports
• Rated to 230 psi for use in pneumatic and compatible fluid systems
• Accepts 3/8 inch OD tubing on run and branch ports
• Polymer body resists corrosion and reduces overall assembly weight
• Compact profile measures 1.55 x 1.55 x 0.63 inches for installation in tight spaces

Compatibility

Designed as an OEM-style replacement or new-installation push-to-connect tube fitting for pneumatic and fluid tubing systems using 3/8 inch OD tubing rated to 230 psi.

Installation Notes

Installation is typically performed by licensed HVAC technicians or plumbers familiar with push-to-connect fittings. Before servicing any line, depressurize the system fully and verify zero pressure before inserting or removing tubing. Tubing ends should be cut square and deburred to ensure a leak-free seal. Verify that the tubing OD and system pressure rating are within the specifications of this fitting before commissioning.
