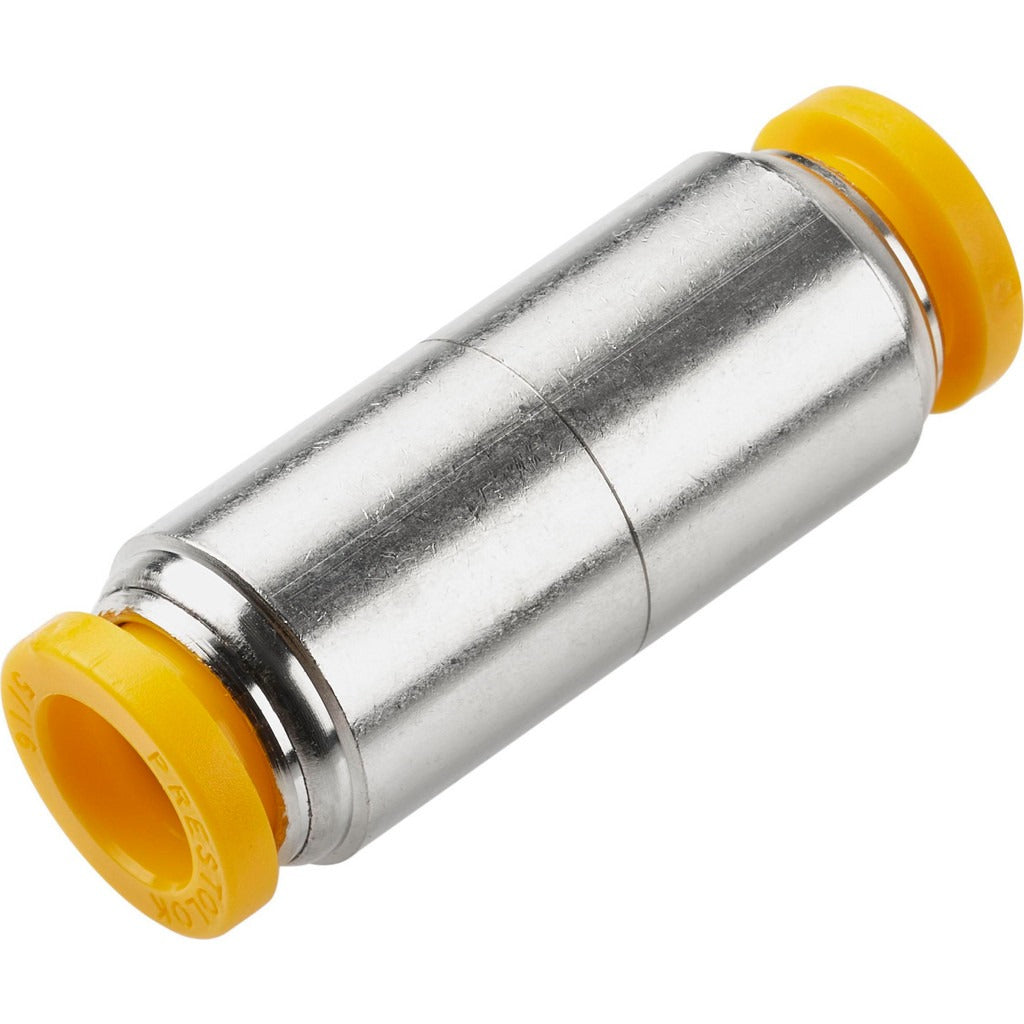

Parker 62PLP-10M Push-to-connect Union Straight Fitting

Product Description

The PARKER 62PLP-10M is a push-to-connect straight union tube fitting designed to join two tubes of equal outside diameter in a single inline connection. Constructed from nickel-plated brass with a silicone-free grease lubricant, it delivers a rated working pressure of 300 psi and handles temperatures from 0 degrees F to 200 degrees F. The silver body and yellow release button are standard to Parker push-to-connect designs, allowing tool-free tube insertion and one-action disconnection. This fitting is sold individually and suits plumbing, pneumatic, and fluid-transfer applications where a compact, leak-resistant union is required.

The 62PLP-10M is suited for residential and light commercial plumbing, pneumatic control lines, and process fluid systems that run 10mm outside-diameter tubing. Its straight union configuration makes it a practical choice for inline repairs, extensions, or new installations where two tube ends must be joined quickly and securely without threading or soldering. The UL94 V-0 flame resistance rating on internal components makes it appropriate for installations in or near equipment enclosures where flame-spread requirements apply.

Key Features

• Push-to-connect design allows tool-free tube insertion and single-action tube release via yellow release button
• Nickel-plated brass body resists corrosion and meets silicone-free requirements for sensitive system environments
• 300 psi maximum working pressure for use in moderate-pressure pneumatic and fluid lines
• Temperature range of 0 degrees F to 200 degrees F covers most commercial and residential service conditions
• UL94 V-0 flame resistance standard compliance on internal components
• Compact overall length of 1.61 inches minimizes installation footprint in tight spaces

Compatibility

Designed as a straight union push-to-connect fitting for 10mm outside-diameter tubing in pneumatic, plumbing, and fluid-transfer systems requiring a 300 psi rated inline connection.

Installation Notes

Installation is performed by plumbers, pipefitters, or pneumatic technicians depending on the system type. Before connecting or disconnecting, depressurize and isolate the line completely. Ensure tube ends are cut cleanly and squarely with a tube cutter and that the outside diameter is free of burrs, scoring, or deformation before insertion into the fitting body. To release a connected tube, press the yellow collar inward while pulling the tube straight out.
