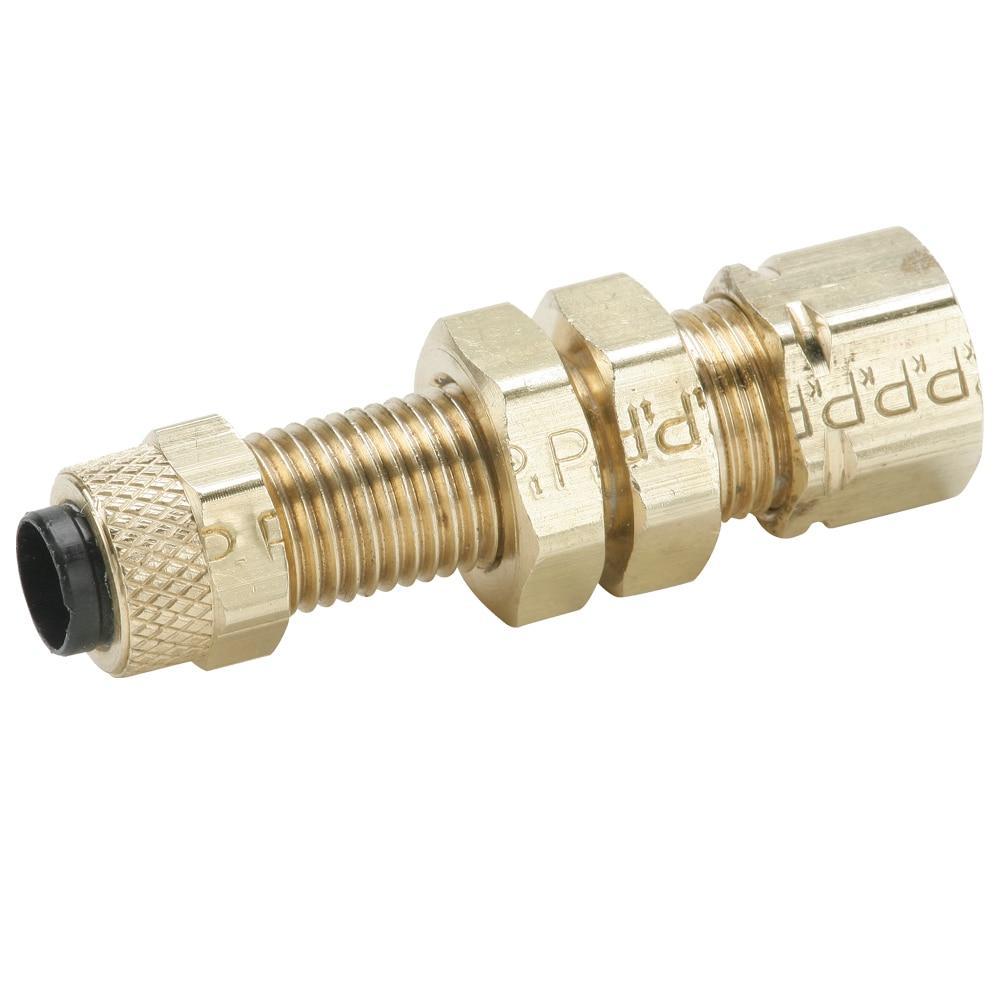

Parker 62PCABH-6 Compression Fitting, 3/8 in, Compression, Brass

Product Description

The Parker 62PCABH-6 is a compression fitting designed for reliable connections in plumbing and HVAC applications. This fitting has a nominal size of three-eighths of an inch and is constructed from brass for durability and strength. It is suitable for use with various thermoplastic tubing types and can handle a pressure rating of up to 150 psi. The fitting operates effectively in a temperature range from negative seventeen to sixty-five degrees Celsius.

• Bulkhead connector type for versatility.
• Machined tube support for enhanced stability.
• Designed for ease of installation with knurled nut.

Product Highlights

This compression fitting facilitates secure connections and is widely used in various piping applications.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker HVAC Filtration

Technical Specifications

• Domestic/Import: Domestic
• End Style: Compression
• Fitting/Connector Type: Bulkhead
• Hex Size: 3/4 in
• Length: 1.39 in
• Material: Brass
• Nominal Size: 3/8 in
• Pressure Rating: 150 psi
• Series: 46F
• Temperature Rating: -17 to 65 deg C
• Type: Economical
