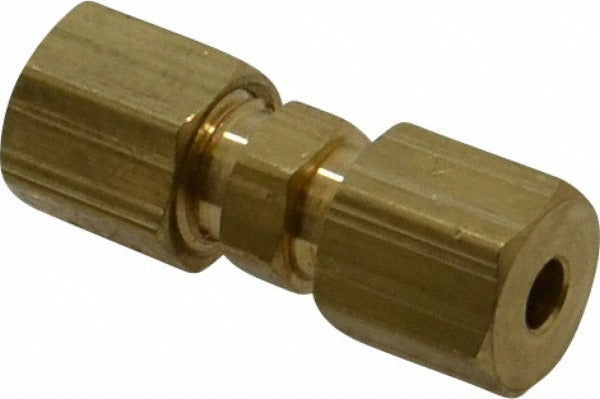

Parker 62C-2 Compression Tube Union Brass 5/16-24

Product Description

The PARKER 62C-2 is a brass compression tube union designed to join two compression-end tube lines in a single straight fitting. It accepts 5/16-24 inch thread connections on both ends and is rated for a maximum working pressure of 400 psi and a temperature range of -65 degrees F to 250 degrees F. Manufactured to SAE J-512 standards, this union is a dependable choice for hydraulic, fuel, or refrigerant tubing circuits where a leak-free, serviceable inline connection is required. Licensed plumbers, HVAC technicians, and hydraulic system installers use this fitting as part of copper or compatible metal tube assemblies.

The PARKER 62C-2 is suited for residential and light commercial applications involving compressed-air lines, hydraulic circuits, fuel delivery systems, and refrigerant service connections where compression-style fittings are specified. Its all-brass construction resists corrosion and is compatible with the tubing materials and fluids commonly encountered in HVAC, plumbing, and mobile hydraulic work. The SAE J-512 certification makes it appropriate for OEM and service-replacement installations that require a documented standard.

Key Features

• Brass construction provides corrosion resistance across a wide range of fluids and gases
• Compression x Compression end connections on both sides for tool-accessible, re-serviceable joints
• 5/16-24 inch thread size conforms to SAE J-512 standard
• Rated to 400 psi maximum working pressure
• Wide service temperature range of -65 degrees F to 250 degrees F
• Straight union configuration simplifies inline tube repairs and extensions

Compatibility

Designed as an OEM-style replacement or service fitting for compression tube assemblies conforming to SAE J-512 specifications in hydraulic, fuel, and HVAC tubing systems.

Installation Notes

Installation should be performed by a qualified technician. Depressurize and isolate the tubing circuit fully before disassembling any existing connections. Hand-tighten the compression nuts onto the tubing, then tighten with a wrench to the fitting manufacturer's standard procedure for compression fittings — avoid over-tightening, which can deform the ferrule and cause leaks. Verify system integrity at working pressure before returning the circuit to service.
