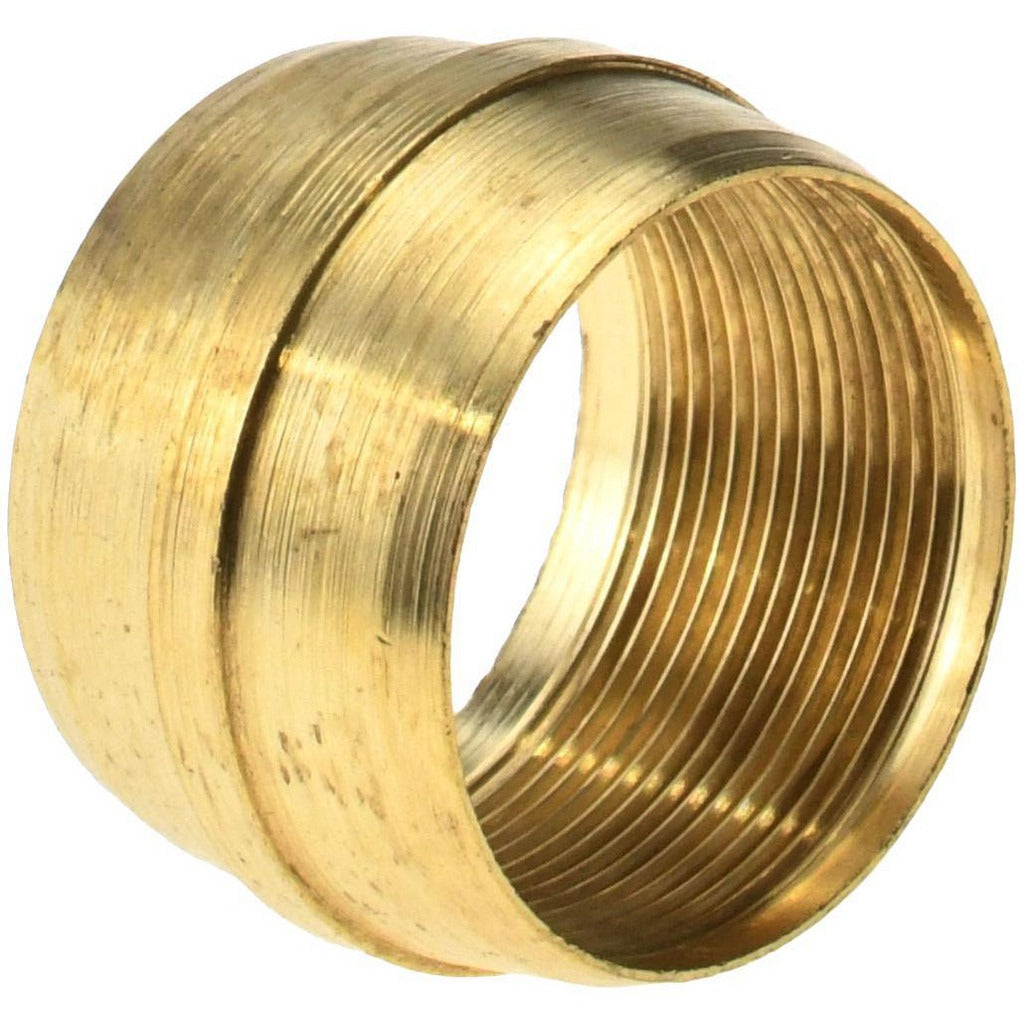

Parker 60NTA-10 Compression Tube Sleeve Brass 5/8 in Od

Product Description

The PARKER 60NTA-10 is a brass compression tube sleeve designed to create a secure, leak-resistant connection in compression fitting assemblies. The sleeve seats between the compression nut and fitting body, biting into the tubing wall as the nut is tightened to form a pressure-tight joint without threading the tube itself. Rated to 150 psi maximum working pressure and suitable for temperatures from -40 degrees F to 200 degrees F, this sleeve is built to DOT FMVSS571.106, SAE J1131, and SAE J246 standards. It fits tubing with a 5/8 inch outside diameter and is commonly installed by HVAC technicians, plumbers, and fluid-system mechanics.

This compression sleeve sees use in a range of hydraulic, pneumatic, and fluid transfer applications where DOT and SAE compliance is required. Typical installations include brake lines, fuel lines, refrigerant tubing, and similar small-bore tubing systems in both mobile equipment and stationary plant environments. The brass construction resists corrosion in moderate fluid environments and provides reliable seating with standard compression nuts and fitting bodies of the same tube-OD series.

Key Features

• Brass construction for corrosion resistance and reliable bite on tubing
• 5/8 inch tube outside diameter sizing for precise fit in compression assemblies
• Rated to 150 psi maximum working pressure
• Wide service temperature range: -40 degrees F to 200 degrees F
• Meets DOT FMVSS571.106, SAE J1131, and SAE J246 standards
• Compression end connection — no soldering, flaring, or threading of the tube required

Compatibility

Designed as an OEM-style compression sleeve for use with 5/8 inch outside diameter tubing in compression fitting systems meeting DOT and SAE specifications.

Installation Notes

Installation is performed by HVAC technicians, plumbers, or fluid-system mechanics working on compression tubing assemblies. Depressurize and drain the line before disassembly or installation. Slide the sleeve onto the tubing before inserting the tube into the fitting body, then hand-tighten the compression nut before applying a final wrench turn per the fitting manufacturer's guidance. Do not over-tighten — excessive torque can crack the sleeve or deform the tubing wall.
