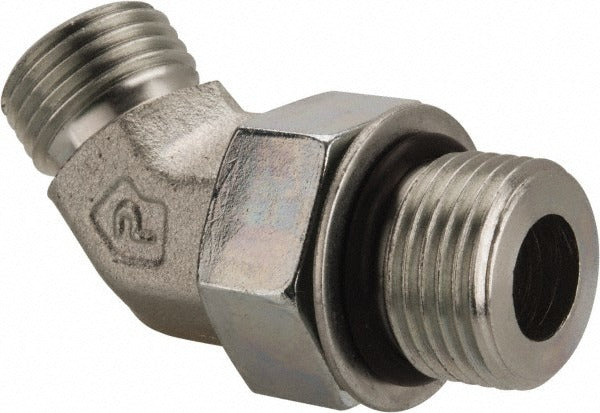

Parker 6-8 V5OLO-S Male 45 Elbow Fitting 3/8 in Od Orfs Sae-orb

Product Description

The PARKER 6-8 V5OLO-S is a compression tube male 45-degree elbow fitting designed for high-pressure hydraulic and fluid-system plumbing. It connects a 3/8-inch outside diameter tube on one end to a 3/4-16 UNF male thread on the other, with an O-Ring Face Seal (ORFS) interface on the tube side and an SAE O-Ring Boss (SAE-ORB) interface on the port side. The zinc-plated steel construction provides corrosion resistance in demanding service environments. Rated to 6000 psi maximum working pressure, this fitting is engineered for use wherever a reliable, leak-resistant 45-degree transition is required between tube and port connections. Installation is typically performed by licensed hydraulic system technicians or industrial maintenance professionals.

This fitting is suited for mobile hydraulic systems, industrial machinery, and fluid power plumbing applications requiring a 45-degree directional change from a tube run to a threaded port. The ORFS x SAE-ORB configuration is commonly found in heavy equipment, agricultural machinery, construction equipment, and related hydraulic circuits. The 3/8-inch tube OD and 3/4-16 UNF thread size place this fitting in a common mid-range hydraulic plumbing category used across a broad range of OEM and aftermarket service applications. It is sold individually with a minimum order quantity of one.

Key Features

• 45-degree male elbow geometry for directional tube-to-port routing
• ORFS x SAE-ORB end connections provide positive seal at both interfaces
• 6000 psi maximum working pressure rating
• 3/8-inch tube outside diameter on the compression end
• 3/4-16 UNF thread on the male port end
• Zinc-plated steel construction for corrosion resistance in hydraulic service

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic systems using 3/8-inch OD tube with ORFS connections mating to SAE-ORB ported components, consistent with the 3/4-16 UNF thread standard.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring sealing surfaces for nicks or debris before assembly, and ensure the O-ring is properly seated before torquing the connection. Follow the equipment manufacturer and applicable fluid power industry standards for assembly torque and tube flaring or compression procedures.
