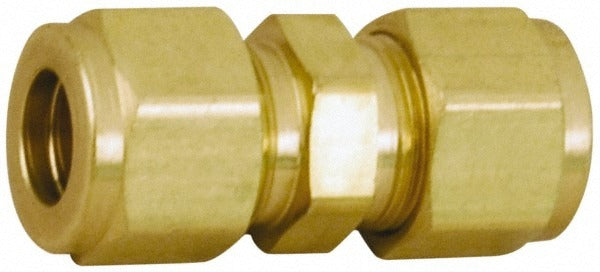

Parker 6-1 Hbz-b Brass Compression Tube Union 2300 Psi

Product Description

The PARKER 6-1 HBZ-B is a brass compression tube union designed to join two sections of tubing with matching compression fittings on both ends. It creates a secure, leak-resistant connection in fluid and gas line systems without the need for soldering or welding. Rated to a maximum working pressure of 2300 psi, this union is suited for demanding service environments. The all-brass construction provides corrosion resistance and durability in a wide range of media. Licensed plumbers, pipefitters, and HVAC technicians are the typical installers for this type of fitting.

This compression tube union is used in residential and light commercial plumbing, refrigeration, pneumatic, and instrumentation tubing systems where a straight inline union connection is required. The compression-by-compression end configuration allows a field technician to make a reliable joint on both ends using standard compression ferrules and nuts. It is particularly useful in retrofit and repair scenarios where tubing must be joined at an intermediate point in a run.

Key Features

• Compression x compression end connections on both sides for tool-assisted, solder-free assembly
• Brass construction provides corrosion resistance and compatibility with a broad range of fluids and gases
• Rated to 2300 psi maximum working pressure for use in high-pressure service lines
• Union configuration allows easy disconnection and reconnection of tubing runs during service
• Compact form factor suits tight installation spaces in equipment panels and utility chases

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tubing systems requiring a straight union connection. Cross-references to Swagelok part number B-600-6-1 per supplier data.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician in accordance with applicable codes including the IPC and IFGC where gas service is involved. Depressurize and isolate the tubing system completely before disassembling or installing any compression fitting. Hand-tighten the compression nut onto the fitting body, then advance with a wrench according to standard compression fitting practice for the tubing material and diameter. Do not overtighten compression nuts, as this can deform the ferrule and compromise the seal.
