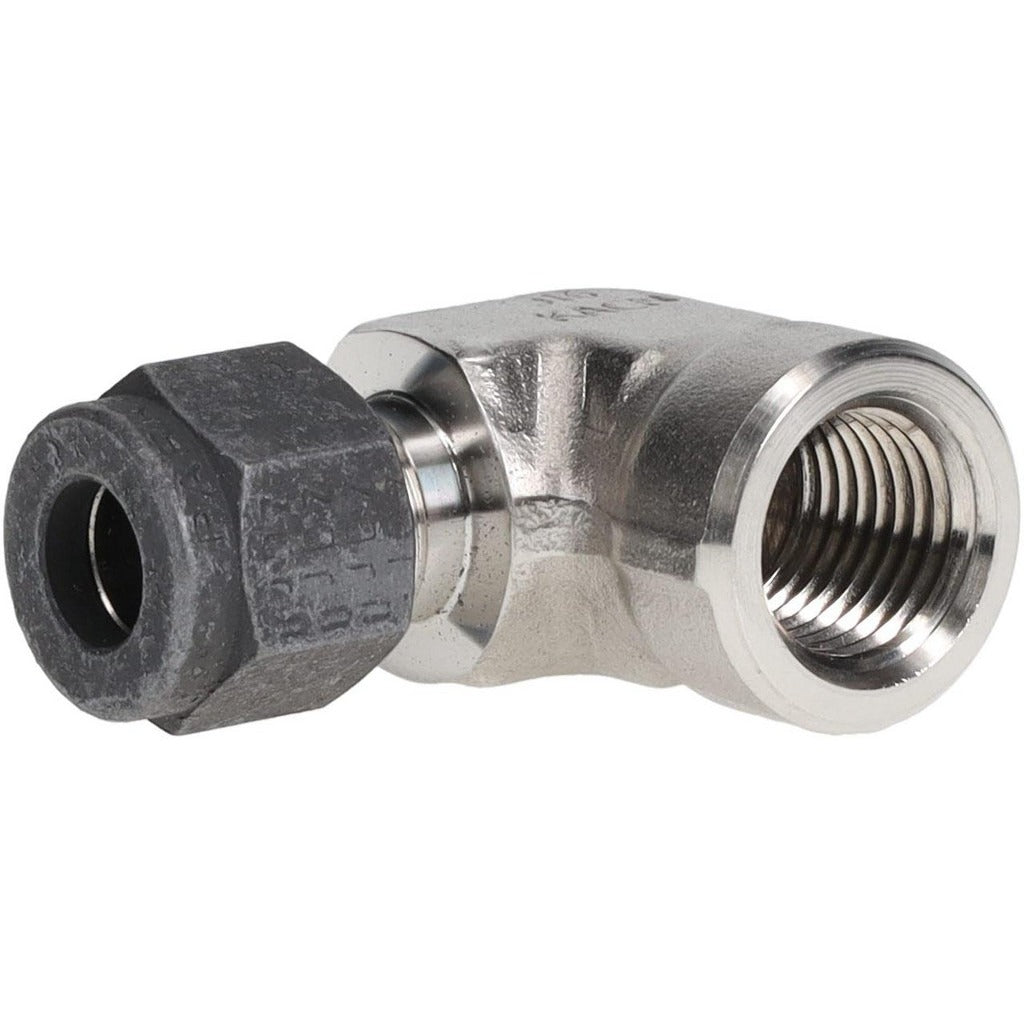

Parker 5-4 Dbz-ss Compression Female Elbow 5/16 Od Ss

Product Description

The PARKER 5-4 DBZ-SS is a compression tube female elbow fitting manufactured in stainless steel. It connects a compression tube end to a female NPT threaded port in a 90-degree elbow configuration. The tube outside diameter is 5/16 inches, and the fitting is rated for a maximum working pressure of 8,100 psi. The stainless steel construction makes it well suited for applications where corrosion resistance and high-pressure capability are required. This fitting is typically installed by licensed plumbers, HVAC technicians, or instrumentation specialists working on fluid or gas distribution lines.

This elbow fitting is used wherever a compression tube must transition to a female NPT threaded connection at a 90-degree angle. Common applications include instrument tubing, pneumatic control lines, hydraulic systems, and refrigeration or HVAC piping where stainless steel is specified. Its high working pressure rating makes it appropriate for both industrial and commercial service environments. The Compression x FNPT end configuration is standard in many control and process piping assemblies.

Key Features

• Stainless steel construction for corrosion resistance in demanding service environments
• 5/16 inch tube outside diameter compression end for secure, leak-resistant tube connection
• Female NPT threaded end for direct connection to standard pipe threads
• Maximum working pressure of 8,100 psi suits high-pressure fluid and gas lines
• 90-degree elbow geometry allows directional changes in tight plumbing layouts

Compatibility

Designed as an OEM-style compression tube fitting for use with 5/16 inch OD tubing and female NPT threaded ports in plumbing, HVAC, instrumentation, and industrial fluid system applications.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or HVAC technician. Depressurize and isolate the line completely before removing or installing any compression fitting. Use appropriate tube preparation tools to ensure a clean, square tube cut for a leak-free compression seal. Consult applicable codes such as IPC or ASME B31 piping standards for pressure and material requirements in your jurisdiction.
