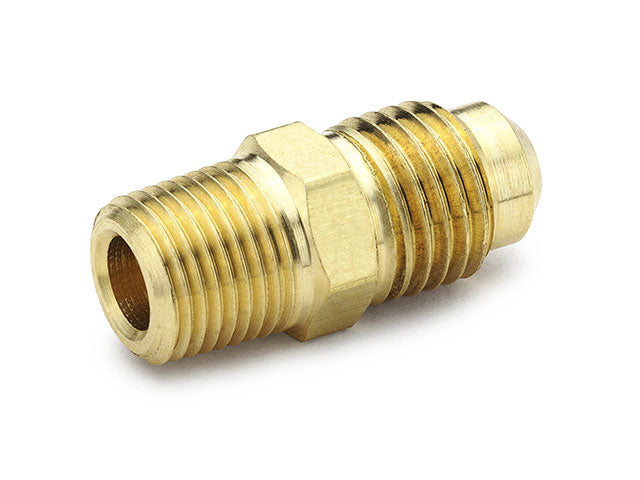

Parker 48F-12-8 Male Connector 48F - 45° Flare Male Connector

Product Description

The Parker 48F-12-8 is a male connector designed for 45° flare applications. This connector meets the specifications of SAE J512 and J513. It is suitable for use with a variety of tubing materials including copper, brass, aluminum, and steel that can be flared to a 45° angle.

• Meets SAE specifications J512 and J513
• Compatible with copper, brass, aluminum, and steel tubing
• Operating temperature range from -65°F to +250°F

Product Highlights

This male connector is widely used in fluid systems for connecting pipes and tubing securely.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• Outer Diameter 1: 3/4 Inch
• Thread 1: 1-1/16-14 UN/UNF
• Thread 2: 1/2 NPT
• Material: Brass
• Pressure Rating: 550 PSI
• Operating Temperature: -65°F to +250°F
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Connector
