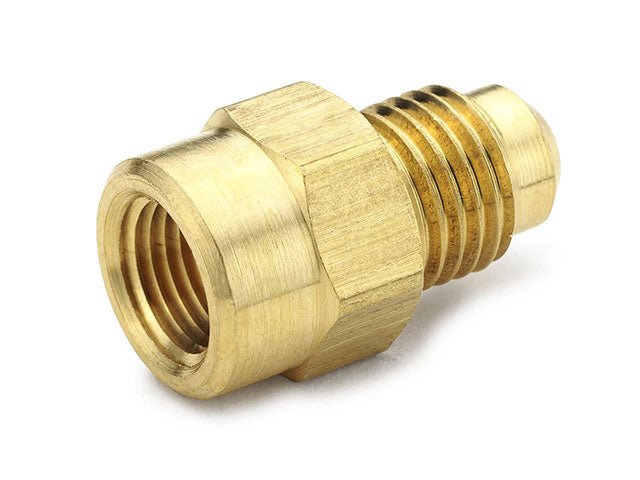

Parker 46F-4-4 Female Connector 46F 45 Degree Flare 1/4 Inch

Product Description

Parker 46F-4-4 is a female connector designed for use with various tubing types. This connector meets the standards of SAE J512 and J513. It is suitable for use with copper, brass, aluminum, or steel tubing that can be flared to a 45-degree angle.

• Material: Brass provides durability and corrosion resistance.
• Compatible with 7/16-20 UN/UNF and 1/4 NPT threads.
• Operating temperature range of -65°F to +250°F.

Product Highlights

This connector is commonly used in fluid systems and is rated for a maximum pressure of 1400 PSI. It is ideal for applications needing reliable connections in various environments.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 46F-4-4

Technical Specifications

• Outer Diameter: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 1/4 NPT
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Female
• Configuration Sub-Type: Female Connector
• Pressure Rating: 1400 PSI
