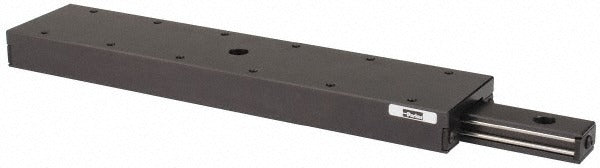

Parker 4609 Ball Bearing Slide Table 142 Lb 9 Inch Travel

Product Description

The PARKER 4609 is a single-axis ball bearing slide table designed for linear motion applications requiring smooth, repeatable travel. It provides 142 pounds of load capacity and 9 inches of travel, making it suitable for light-to-medium duty positioning tasks. The table measures 12 inches long by 2.62 inches wide by 1 inch high. Mounting is handled through 10 mounting holes sized at 10-32 with a center-to-center spacing of 1 inch. Mechanical engineers, automation technicians, and industrial maintenance professionals are the primary installers of this component.

The PARKER 4609 is used in single-axis linear motion setups found in light industrial automation, test and measurement rigs, and precision positioning assemblies. Its compact footprint and standardized 10-32 mounting hole pattern allow it to integrate into a wide range of machine frames and fixture plates. It is appropriate for both bench-top laboratory setups and in-line production equipment where controlled linear displacement is required.

Key Features

• 142 pounds load capacity for light-to-medium duty linear positioning
• 9 inches of travel for extended range single-axis movement
• Ball bearing construction for smooth, low-friction travel
• 10 mounting holes with 10-32 thread size and 1 inch center-to-center spacing
• Compact profile at 12 inches long by 2.62 inches wide by 1 inch high
• Single-axis configuration simplifies integration into existing assemblies

Compatibility

Designed as a direct-mount single-axis ball bearing slide table compatible with fixtures and machine frames using standard 10-32 threaded mounting hole patterns.

Installation Notes

Installation is typically performed by automation technicians or mechanical maintenance personnel. De-energize and lock out all power to the machine before removing or installing any slide table assembly. Ensure the mounting surface is flat and clean before securing to prevent binding or misalignment during travel. Verify that the applied load does not exceed the rated 142 pound capacity to maintain service life and accuracy.
