Parker 422 Hydraulic Hose

Product Description

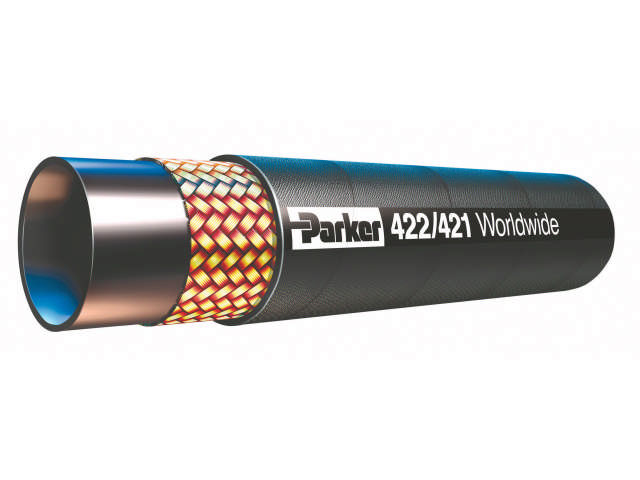

The Parker 422 hydraulic hose is suitable for petroleum-based hydraulic fluids and lubricating oils. This hose adheres to strict international specifications for reliable performance. It features a synthetic rubber inner tube and cover with a one braid steel wire reinforcement.

• Designed to global standards including ISO 1436-1 Type 1SN and SAE 100R1 Type AT.
• Constructed with a synthetic rubber inner tube and cover.
• Meets a variety of application needs in hydraulic systems.

Product Highlights

The Parker 422 hose is engineered for durability and versatility in various environments.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Series: 422

Technical Specifications

• Application: Petroleum base hydraulic fluids and lubricating oils
• Reinforcement: One braid steel wire
• Cover: Synthetic rubber
• Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Fittings: 43 or 42 series
• ISO: 1436-1 TYPE 1SN
• SAE: 100R1 TYPE AT
• EN: 853 TYPE 1SN
• Bend Radius: 12 inches
• Hose I.D.: 1 inch
• Hose Outside Diameter: 1.41 inches
• Pressure Rating: 1275 psi
