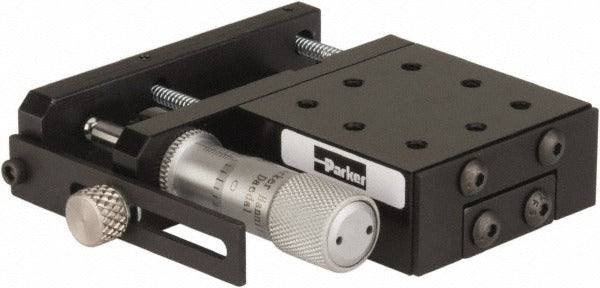

Parker 4052 Precision Ball Bearing Table 25 Lb Side Drive

Product Description

The PARKER 4052 is a single-axis precision ball bearing table with side drive, designed for linear positioning applications requiring smooth, repeatable motion. It supports a load capacity of 25 pounds and provides 0.5 inches of travel. The table measures 1.75 inches long by 1.75 inches wide by 0.75 inches high and features 8 mounting holes on a 6-32 thread pattern with a center-to-center mounting hole length of 1 inch. It is installed by mechanical engineers, automation technicians, and precision assembly professionals working with motion control equipment.

The PARKER 4052 is suited for laboratory, industrial automation, and precision instrumentation applications where controlled single-axis linear travel is required. Its compact footprint and standardized 6-32 mounting interface make it a practical fit for benchtop positioning stages and light-duty linear slide assemblies. The side drive configuration allows actuator access from the side of the table, which is useful in space-constrained installations.

Key Features

• 25-pound load capacity for light-duty precision positioning
• 0.5-inch travel range for controlled linear motion
• Precision ball bearing construction for smooth, repeatable movement
• Side drive configuration for space-efficient actuator access
• 8 mounting holes with 6-32 thread for secure, versatile installation
• Compact form factor: 1.75 inches long by 1.75 inches wide by 0.75 inches high

Compatibility

Designed as an OEM-style replacement or component addition for single-axis linear positioning stages and precision motion control assemblies using 6-32 mounting interfaces.

Installation Notes

Installation is typically performed by mechanical or automation technicians familiar with precision linear motion components. Ensure the mounting surface is clean, flat, and free of debris before securing the table. Use appropriately sized 6-32 fasteners and verify all mounting holes are engaged evenly to prevent binding. Power down any connected actuators or motion controllers before servicing or replacing the table.
