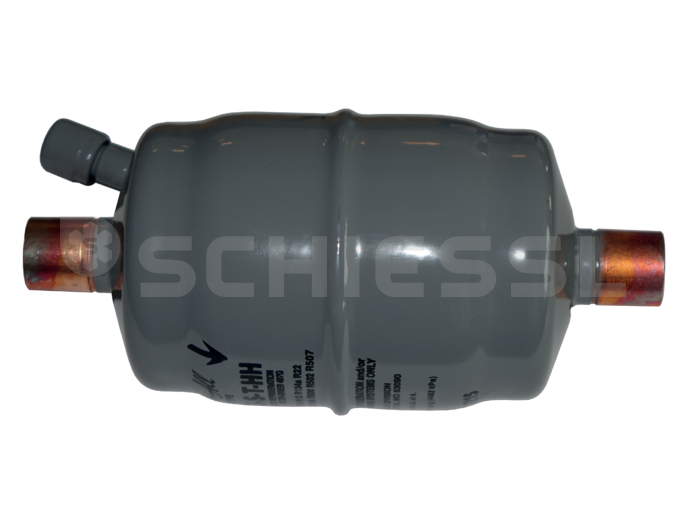

Parker 400796 Cleaning Dryer 1/2 Solder

Product Description

The Parker 400796 Cleaning Dryer is useful for temporary applications in intake and fluid lines. This dryer efficiently removes moisture, dirt, acids, and wax deposits from circuits. It features a blend of molecular sieve, activated alumina, and activated charcoal within its cast inserts, which work alongside a filter to ensure thorough decontamination. The dryer is compatible with HFCs and CFCs.

• Filtration capability of twenty micrometres.
• Maximum pressure handling of forty-five bar.
• Inlet and outlet connection size of one-half inch solder.

Product Highlights

This cleaning dryer is ideal for HVAC applications that require moisture removal from refrigerant circuits and is designed for easy installation.

Product Information

Standard Information

• Brand: Parker
• MPN: 400796

Technical Specifications

• Type: C-144-S-TT-HH
• Construction: Solder
• Filtration: 20 micrometres
• Maximum Operating Pressure: 45 bar
• Acid Absorption: 6.8 g
• Water Adsorption (R 134A): 3.9 g at 52 degrees Celsius
• Water Adsorption (R 404A): 4.7 g at 52 degrees Celsius
• Water Adsorption (R 507A): 4.7 g at 52 degrees Celsius
• Water Adsorption (R 407C): 1.4 g at 52 degrees Celsius
• Water Adsorption (R 410A): 1.6 g at 52 degrees Celsius
• Weight Net: 0.9 kg
• Flow Power (R 134A): 25.1 kW
• Flow Power (R 407C): 29 kW
• Flow Power (R 404A): 19.8 kW
• Flow Power (R 507A): 19.8 kW
• Flow Power (R 410A): 28.7 kW
• Flow Power Pressure Loss (R 134A): 0.07 bar at 3.2 kW
• Flow Power Pressure Loss (R 407C): 0.07 bar at 4.2 kW
• Flow Power Pressure Loss (R 404A): 0.07 bar at 3.8 kW
• Flow Power Pressure Loss (R 507A): 0.07 bar at 3.8 kW
• Flow Power Pressure Loss (R 410A): 0.07 bar at 5.4 kW
• Outlet: 1/2 Zoll
• Inlet: 1/2 Zoll
• Suction Gas Temperature: -40 to +66 degrees Celsius
• Diameter: 113 mm
• Total Length: 105 mm
• Length: 79 mm
