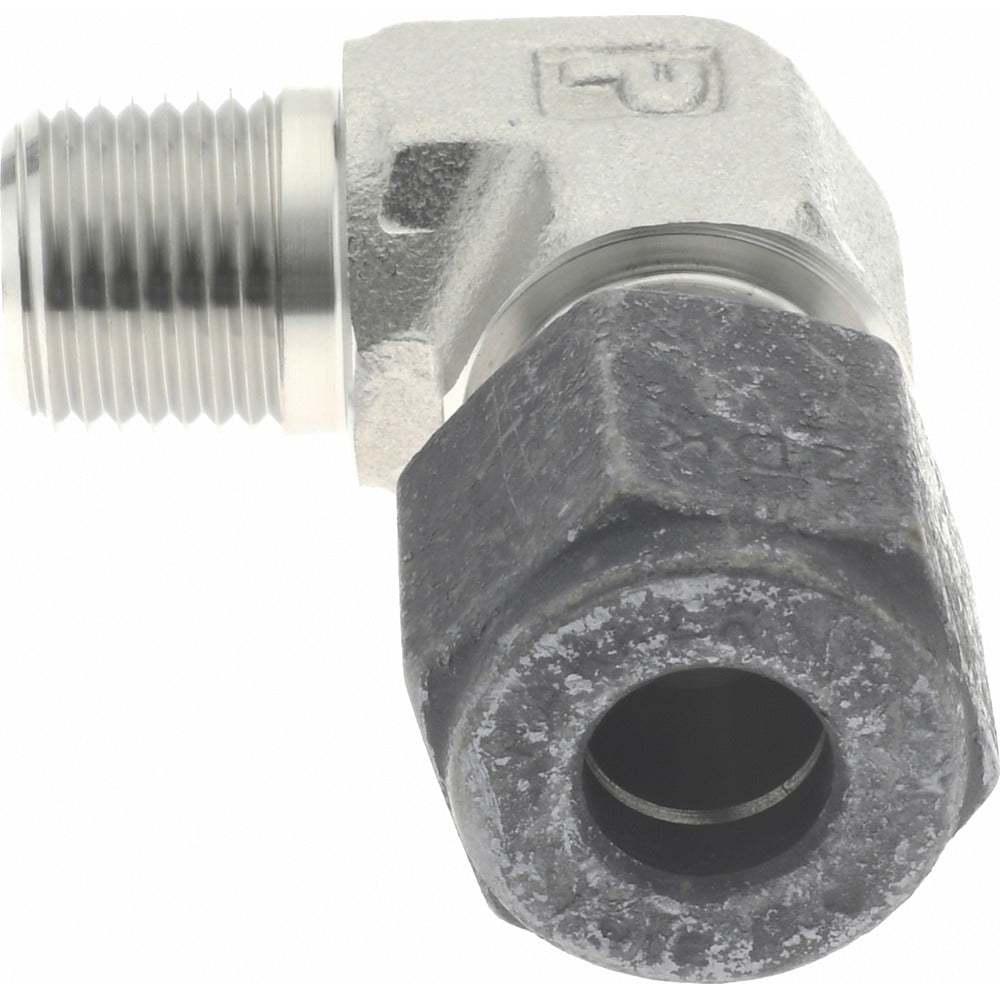

Parker 4-2 Cbz-ss Compression Male Elbow 1/8 in Mnpt Ss

Product Description

The PARKER 4-2 CBZ-SS is a compression tube male elbow fitting constructed from stainless steel and designed to create a 90-degree directional change in tubing runs while transitioning to a male NPT threaded connection. One end accepts tubing via a compression-style connection; the other end terminates in a 1/8 inch MNPT thread. The stainless steel body resists corrosion in wet, chemical, and outdoor environments. This fitting is rated for a maximum working pressure of 10,300 psi, making it suitable for high-pressure fluid and instrumentation lines. It is installed by licensed plumbers, HVAC technicians, and instrumentation mechanics working on process, refrigeration, and hydraulic systems.

This fitting is used in residential and commercial applications where a tubing line must change direction and connect to a male NPT port. Common install scenarios include instrument tubing runs, pneumatic control lines, hydraulic systems, and refrigeration or gas distribution networks where a reliable leak-free compression-to-NPT transition is required. The compact elbow geometry allows installation in tight spaces where straight fittings cannot route tubing effectively.

Key Features

• Stainless steel body for corrosion resistance in harsh or wet environments
• Compression x MNPT end connections for tool-assisted, leak-free assembly
• 1/8 inch thread size in MPT standard
• Maximum working pressure of 10,300 psi for high-pressure applications
• 90-degree male elbow configuration for directional tubing changes
• Compact form factor suited for restricted installation spaces

Compatibility

Designed as an OEM-style compression tube male elbow fitting for use in instrumentation, pneumatic, hydraulic, and fluid distribution systems requiring a 1/8 inch MNPT connection with a compression tube inlet.

Installation Notes

Installation is performed by a licensed plumber, HVAC technician, or instrumentation mechanic. Depressurize and isolate the line completely before disassembling any existing fittings or installing this elbow. Use a calibrated torque wrench and follow the tubing manufacturer and fitting manufacturer guidelines for compression ferrule engagement — do not over-tighten, as stainless steel compression fittings can gall. Apply thread sealant or PTFE tape to the MNPT threads in accordance with applicable piping codes before making up the connection.
