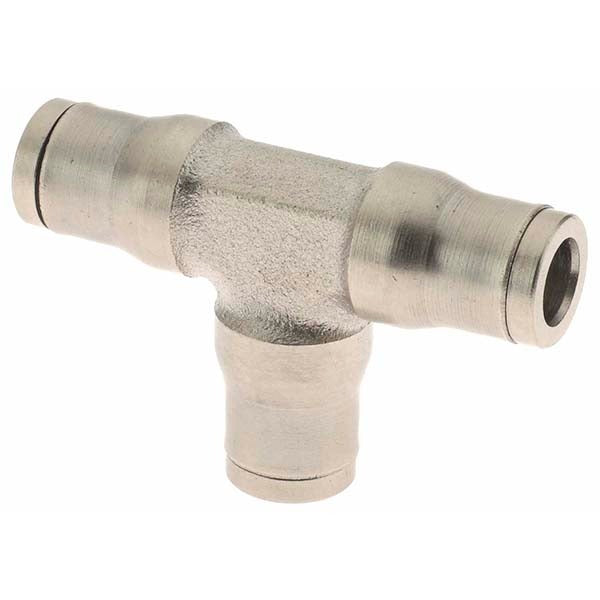

Parker 36040600 Push-to-connect Union Tee 6mm

Product Description

The PARKER 36040600 is a push-to-connect union tee tube fitting designed for tube-to-tube connections in fluid and pneumatic systems. Constructed from nickel-plated brass with an FKM o-ring seal, this fitting handles pressures up to 435 psi and operates across a wide temperature range of -13 degrees F to 302 degrees F. The union tee configuration allows a single tube line to split into two directions without tools, making connections fast and repeatable. Licensed plumbers, pipefitters, and industrial maintenance technicians install this type of fitting in both light and heavy-duty fluid handling applications.

This fitting is suited for a wide range of professional and industrial environments. Rated applications include food processing equipment, coffee machines, in-plant automotive systems, medical equipment, printing machinery, misting systems, and welding robots. The 6mm outside diameter tube compatibility and multi-standard certifications make this fitting a practical choice for installations that must meet food safety, pressure equipment, or hazardous environment compliance requirements. It ships in a package quantity of 5 units.

Key Features

• Push-to-connect design enables tool-free tube installation and removal
• Nickel-plated brass body with FKM o-ring seal for chemical and temperature resistance
• Rated to 435 psi working pressure
• Wide service temperature range: -13 degrees F to 302 degrees F
• Certified to RoHS, ATEX, PED, REACH, FDA 21 CFR, NSF H1 USDA, and UL94 V-0 standards
• Union tee configuration for three-way tube-to-tube branching

Compatibility

Designed for use with 6mm outside diameter tubing in food processing, coffee machines, in-plant automotive, medical equipment, printing, misting, and welding robot applications.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified industrial maintenance technicians. Before servicing any line, depressurize the system fully and verify all fluid supply is shut off. Push-to-connect fittings require clean, burr-free tube ends cut square for a proper seal. Verify the fitting and tubing materials are chemically compatible with the media being conveyed before commissioning.
