Parker 3524-00 Modular Banjo Fitting

Product Description

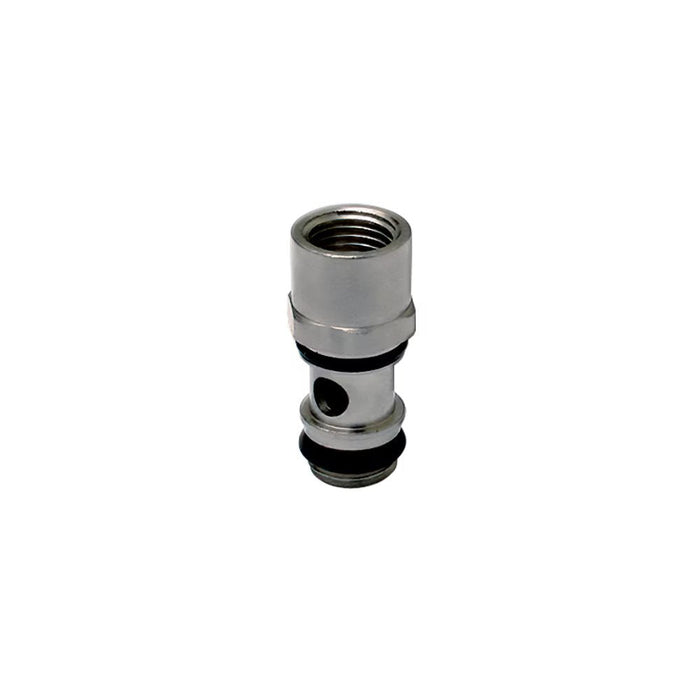

The Parker 3524-00 modular banjo fitting is made for LF 3000 push-in fittings. The fitting is crafted from nickel-plated brass and comes with male and female BSPP threads. This fitting is ideal for compressed air applications and allows for a full 360-degree orientation. It has a design that allows it to be mounted from above, ensuring efficient use of space between connections.

• Features male and female BSPP threads.
• Constructed from nickel-plated brass.
• Designed for compressed air applications.

Product Highlights

The Parker 3524-00 modular banjo fitting is suitable for various applications and provides reliable performance in compressed air systems.

Product Information

Standard Information

• Series: 3524 Series
• Shape: Banjo

Technical Specifications

• Material(s): Nickel-Plated Brass
• Seal Material(s): Buna-N/Nitrile Rubber
• Special Properties: Silicone Free
• Compatible Fluids: Compressed air
• Working Pressure: Vacuum to 20 bar
• Working Temperature: -20°C to +80°C
• Regulations: ISO 14743, PED, RoHS, REACH
