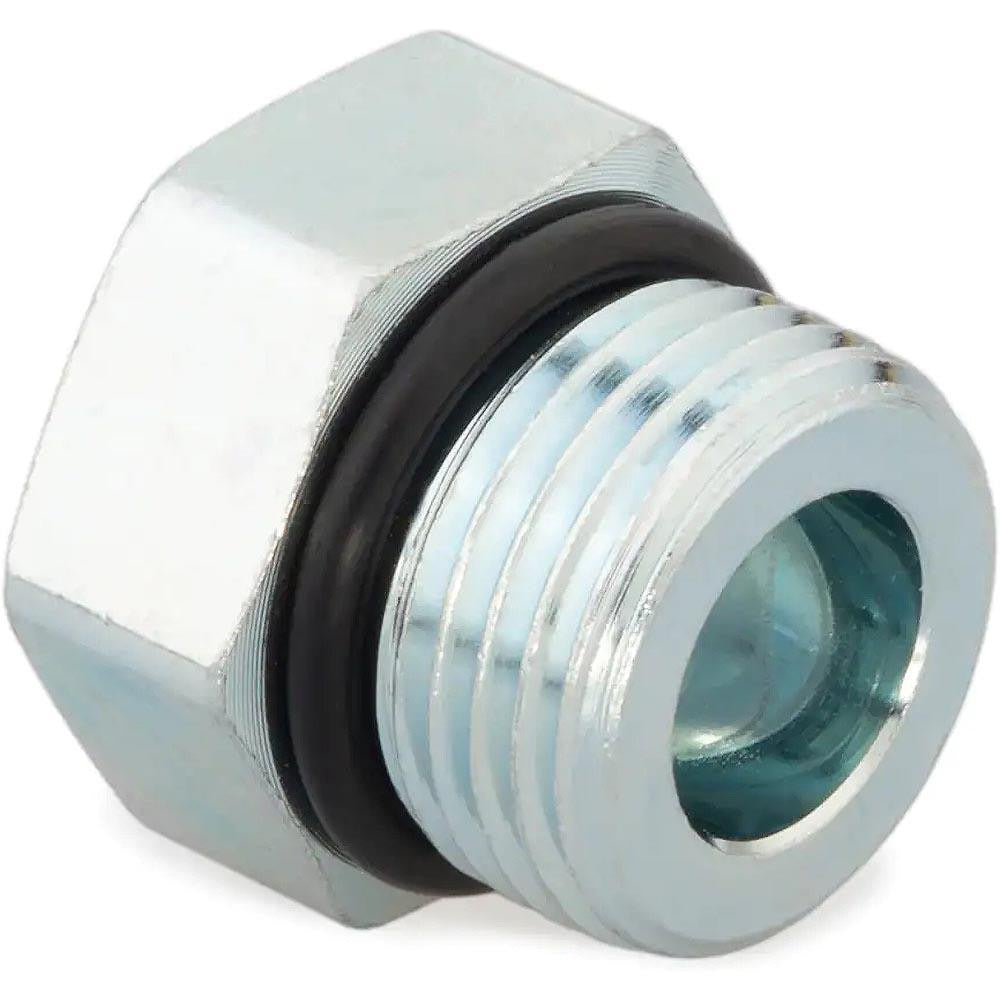

Parker 32 P5ON-S Hex Plug 2-1/2 in Male Sae-orb 2000 Psi

Product Description

The PARKER 32 P5ON-S is a male SAE-ORB hex plug designed to seal hydraulic and fluid power ports in industrial and mobile equipment applications. It threads directly into an SAE O-Ring Boss port to provide a pressure-tight closure without the need for thread sealants. The plug carries a maximum working pressure rating of 2000 psi and features a 2-1/2 inch male thread with a 2-3/4 inch hex drive for reliable torquing with standard hand tools. Weighing 1.8 pounds, it is a solid, durable fitting suited for high-demand fluid system work. Licensed technicians and industrial mechanics are the typical installers of this component.

This hex plug is used in hydraulic systems, fluid power assemblies, and industrial plumbing where an SAE-ORB port needs to be blanked off or temporarily capped during service, system modification, or equipment storage. It is appropriate for both stationary industrial machinery and mobile hydraulic equipment where port sealing at elevated pressures is required. The 2000 psi pressure rating makes it suitable for a broad range of medium- to high-pressure hydraulic circuits encountered in manufacturing, construction, and process industries.

Key Features

• Male SAE-ORB connection type provides leak-free port sealing via O-ring face contact
• 2000 psi maximum working pressure rating suitable for medium- to high-pressure hydraulic systems
• 2-1/2 inch male thread size for direct installation into standard SAE-ORB ports
• 2-3/4 inch hex drive allows installation and removal with standard hand wrenches
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style replacement hex plug for hydraulic and fluid power systems equipped with standard SAE O-Ring Boss (SAE-ORB) ports requiring a 2-1/2 inch male thread closure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with SAE-ORB fittings. Depressurize and isolate the hydraulic circuit completely before removing or installing any port plug. Inspect the O-ring sealing surface on the plug and the port for nicks, burrs, or contamination before threading in. Do not overtighten — apply torque with a properly sized wrench to the hex flats only, never to adjacent hose or tubing.
