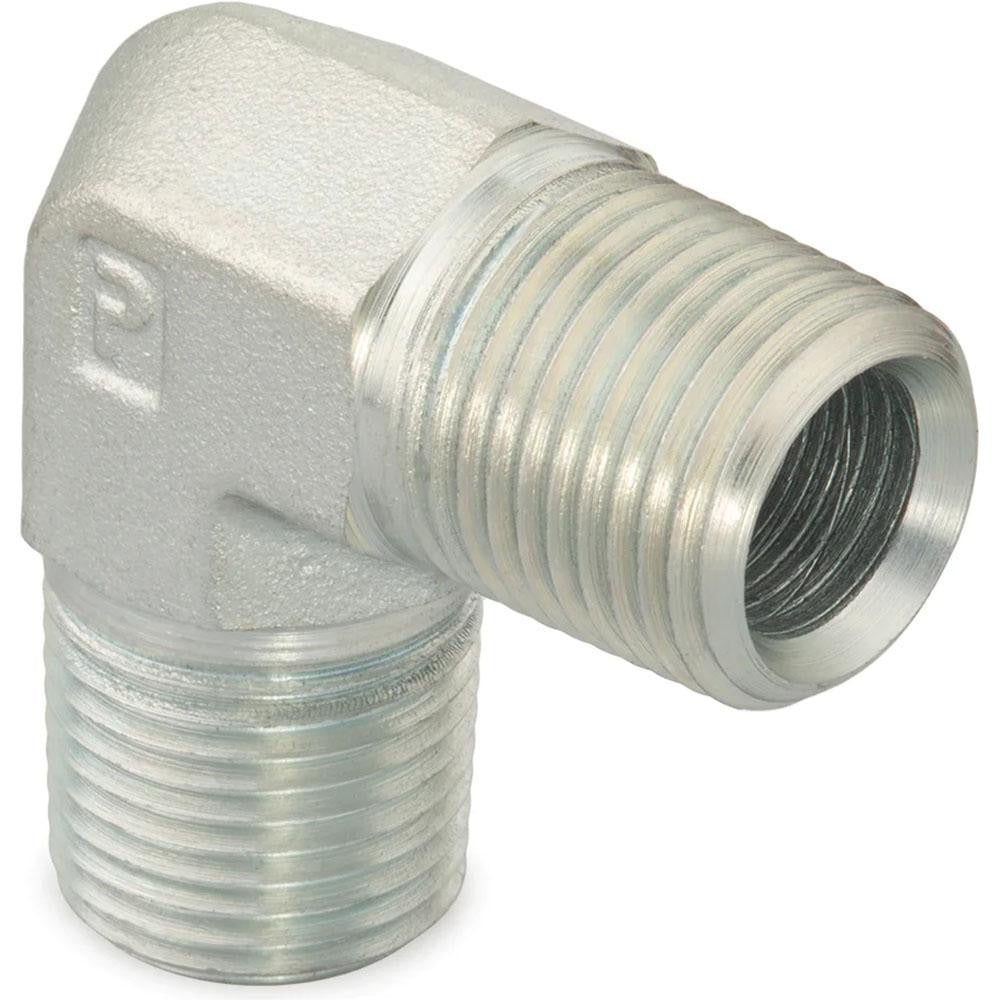

Parker 3/8 Cr-s 90 Degree Male Elbow 3/8 Mnptf 6000 Psi

Product Description

The PARKER 3/8 CR-S is a 90-degree male elbow fitting designed for high-pressure industrial pipe and hydraulic systems. It accepts a 3/8-inch male MNPTF thread connection and is rated to a maximum working pressure of 6,000 psi. This fitting redirects flow at a right angle in hard-line pipe assemblies and compressed-air, hydraulic, or fluid-transfer circuits. Journeymen pipefitters, hydraulic technicians, and industrial maintenance mechanics typically install this type of fitting during system fabrication or repair. The MNPTF thread form provides a pressure-tight mechanical seal without relying on thread sealant alone.

This elbow is suited for industrial fluid-power and compressed-gas piping applications where a 90-degree directional change is required in a threaded steel line. Common install scenarios include hydraulic power units, high-pressure pneumatic circuits, and industrial process piping where space constraints demand a compact right-angle transition. The fitting is sold and packaged individually, making it practical for both single-point repairs and bulk procurement on larger projects.

Key Features

• 90-degree male elbow geometry for right-angle flow direction changes in threaded pipe runs
• 3/8-inch MNPTF male thread on both ends for a secure, pressure-rated mechanical connection
• 6,000 psi maximum working pressure rating supports demanding hydraulic and high-pressure pneumatic service
• MNPTF thread classification ensures compatibility with standard dryseal pipe thread fittings and ports
• Single-piece packaging with no minimum order quantity above one unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pipe systems using 3/8-inch MNPTF threaded connections rated at or below 6,000 psi working pressure.

Installation Notes

Installation should be performed by a qualified pipefitter or hydraulic technician in accordance with applicable industry and facility codes. Depressurize and isolate the system completely before removing or installing any threaded fitting. Inspect mating threads for damage or contamination before assembly, and apply an appropriate thread sealant or PTFE tape if required by the system specification. Do not exceed the 6,000 psi maximum working pressure rating under any operating or surge condition.
