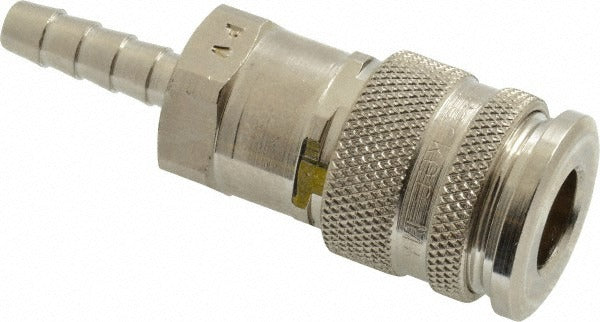

Parker 25KATF06MPN Pneumatic Hose Coupling 1/4 in Brass

Product Description

The PARKER 25KATF06MPN is a brass pneumatic hose coupling in the 25 Series, designed for high-flow interchange applications in compressed air systems. It uses a hose barb connection type with a 1/4 inch body diameter and a 1/4 inch hose inside diameter. Rated to 300 psi maximum working pressure and capable of handling temperatures from -4 degrees F to 212 degrees F, this coupler is built for demanding shop and industrial environments. It weighs 0.26 pounds and measures 2.81 inches in overall length. Installation is typically performed by mechanical contractors, industrial maintenance technicians, or pneumatic system specialists.

This coupler is suited for use in compressed air distribution lines, pneumatic tool connections, and fluid transfer applications where high-flow performance is required. The hose barb thread type makes it compatible with flexible hose assemblies in both light industrial and heavy-duty shop settings. It is sold individually and is appropriate for new installations or replacement of worn or damaged couplings in existing pneumatic systems.

Key Features

• High Flow interchange type for increased air delivery capacity
• Brass construction for corrosion resistance in compressed air service
• Hose barb connection with 1/4 inch inside diameter hose compatibility
• 300 psi maximum working pressure rating
• Operating temperature range of -4 degrees F to 212 degrees F
• Compact 2.81 inch overall length with 0.81 inch hex size

Compatibility

Designed as an OEM-style replacement or new-installation coupler for pneumatic hose assemblies requiring a 1/4 inch body diameter High Flow interchange fitting with a hose barb connection.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and isolate the air line completely before disconnecting or installing any coupling. Ensure the hose inside diameter matches the barb size and that the hose is fully seated and secured with an appropriate clamp. Follow applicable OSHA compressed air safety guidelines and local mechanical codes during service.
