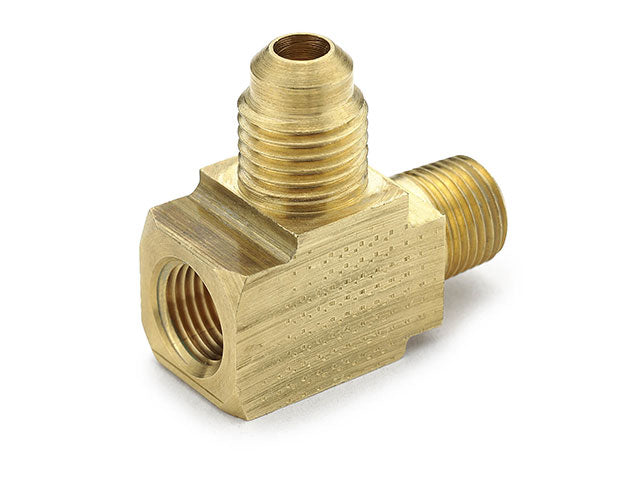

Parker 256F-4-2 Adapter Tee 256F Power EA

Product Description

Parker 256F-4-2 is a brass adapter tee designed for use in piping systems. This product meets the requirements set by SAE J512 and J513 standards. The adapter tee is suitable for connecting copper, brass, aluminum, or steel tubing that can be flared at a forty-five-degree angle.

• Meets SAE J512 and J513 standards
• Compatible with 1/4 inch outer diameter tubing
• Operates within a temperature range of minus sixty-five degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit

Product Highlights

The Parker 256F adapter tee enhances brass fitting systems where reliable connections are essential.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 256F-4-2

Technical Specifications

• Outer Diameter 1: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 3: 1/8 NPT
• Material: Brass
• Series: 45° Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Adapter
• Pressure Rating: 1400 PSI
• Operating Temperature: -65°F to +250°F
