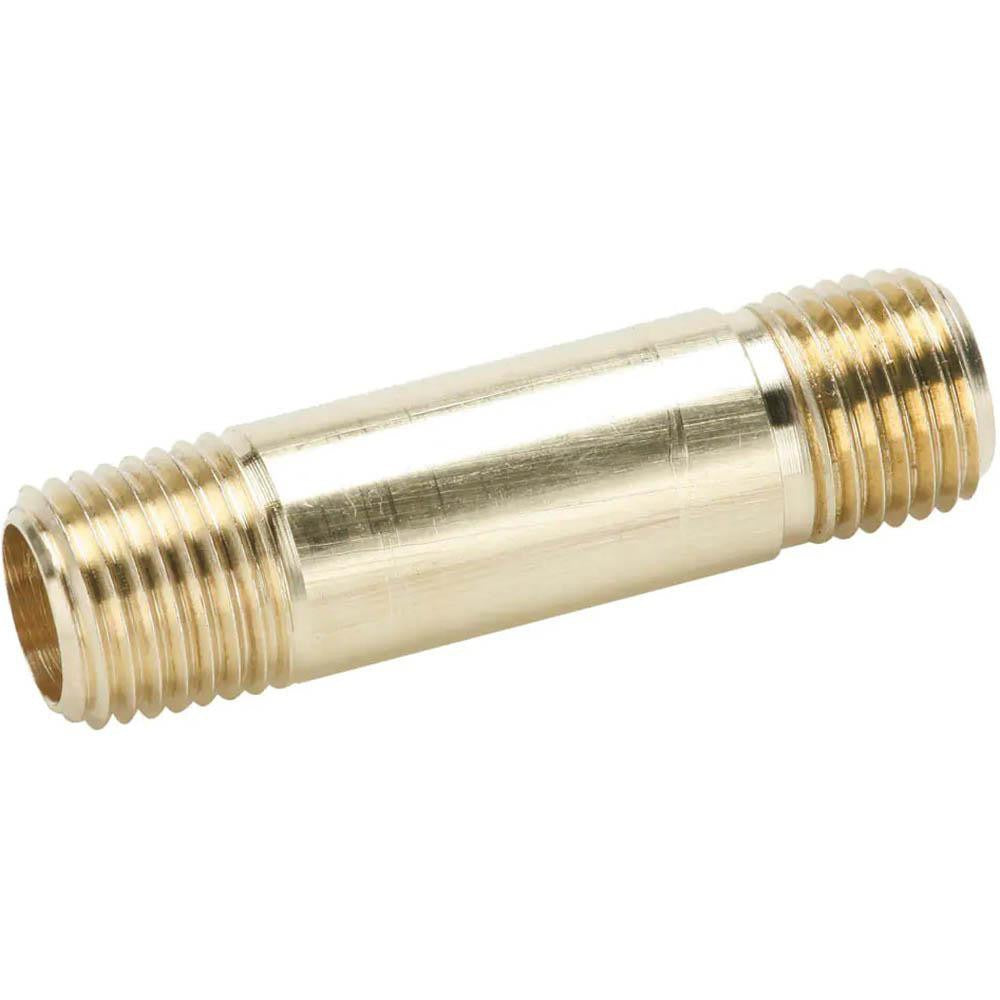

Parker 215PNL-6-25 Long Nipple 3/8 Inch Mnptf Brass

Product Description

The PARKER 215PNL-6-25 is a brass long nipple pipe fitting with a 3/8 inch male MNPTF (male national pipe thread fuel) connection on both ends. Rated to 1000 psi maximum working pressure and designed for a temperature range of -65 degrees F to 250 degrees F, it provides a reliable threaded extension point in compressed air, fuel, hydraulic, and general fluid-transfer lines. At 2.5 inches overall length and 0.1 pounds, it fits easily into tight plumbing runs. Plumbers, pipefitters, and industrial maintenance technicians install this fitting as part of threaded iron or brass pipe assemblies.

This long nipple is suited for residential and light commercial plumbing, fuel lines, and industrial pipe systems where a short threaded extension between two fittings or components is needed. The MNPTF thread form provides a pressure-tight seal in fuel and fluid service. Typical applications include connecting valves, regulators, gauges, and other threaded components within a pipe run where standard close or hex nipples do not provide sufficient length.

Key Features

• 1000 psi maximum working pressure rating for demanding fluid and gas service
• Brass construction resists corrosion in fuel, water, and general fluid applications
• 3/8 inch MNPTF thread on both ends for standard threaded pipe connections
• 2.5 inch overall length provides clearance between adjacent fittings or components
• Wide temperature range: -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/8 inch MNPTF threaded pipe systems in industrial, commercial, and residential applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter following applicable IPC and IFGC codes for the intended fluid or gas service. De-pressurize and isolate the line completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape rated for the service fluid to all MNPTF threads before assembly. Do not over-tighten; use a pipe wrench to achieve a snug, leak-free connection without stressing the fitting body.
