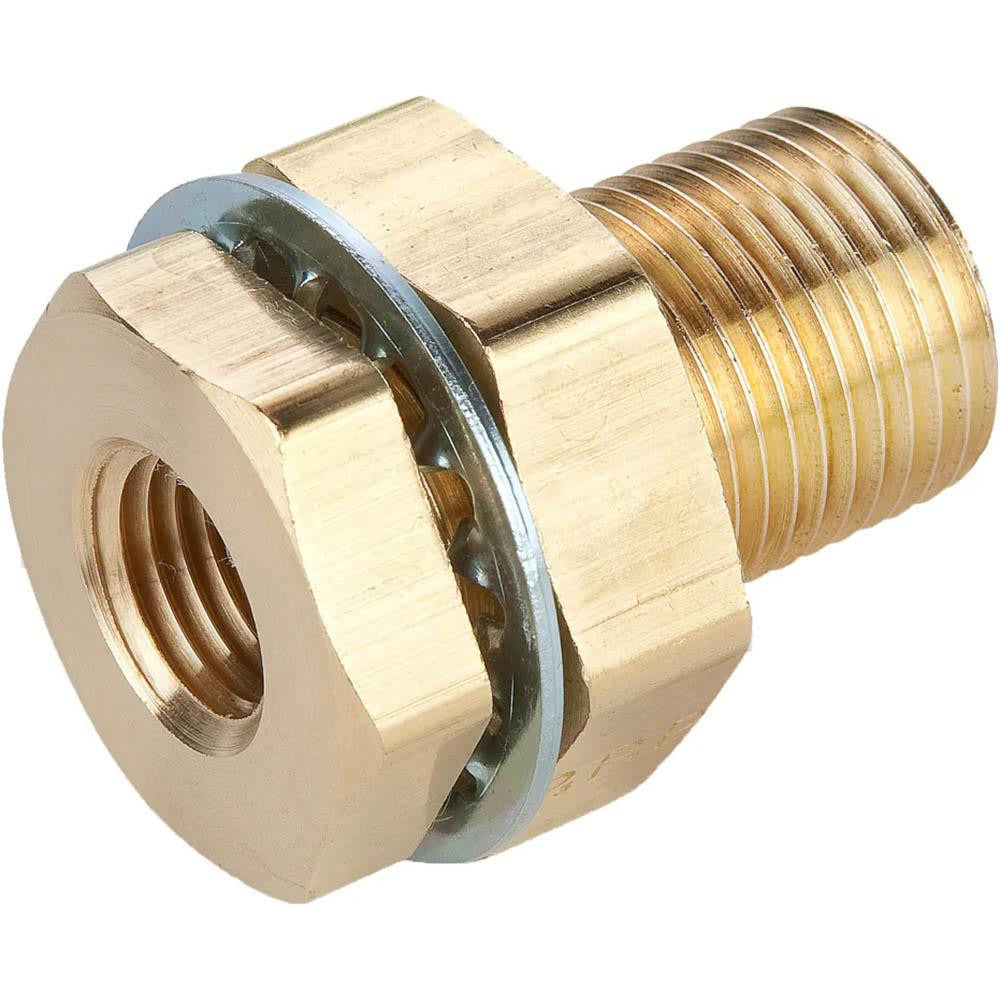

Parker 207ACBH-6 Anchor Coupling 1000 Psi Nptf

Product Description

The PARKER 207ACBH-6 is a male straight thread O-ring by female NPTF anchor coupling designed for industrial hydraulic and fluid power plumbing applications. It connects a 1-14 male straight thread O-ring end to a 3/8 inch female NPTF port, providing a leak-resistant seal rated to 1,000 psi maximum working pressure. The overall installed length is 1.31 inches. Operating temperature range spans -65 degrees F to 250 degrees F, making this fitting suitable for a wide range of fluid media and ambient conditions. Licensed HVAC and fluid power technicians, plumbers, and industrial mechanics install this type of fitting during hydraulic line assembly, equipment porting, and system retrofits.

This anchor coupling is used in industrial fluid power systems, hydraulic machinery, and related equipment where a straight-thread O-ring male end must terminate at a female NPTF port. It is appropriate for both new installation and replacement service on industrial equipment, mobile hydraulics, and plant plumbing where pressure integrity and vibration resistance are required. The anchor-coupling style limits fitting rotation once installed, reducing loosening under dynamic loads. It meets SAE J530 and SAE J531 standards.

Key Features

• 1,000 psi maximum working pressure rating
• Male straight thread O-ring end provides positive, leak-resistant sealing at the male port
• Female NPTF thread on the opposite end for tapered-thread sealing without sealant when properly torqued
• Anchor coupling design resists rotation and loosening under vibration
• Operating temperature range: -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as a direct-fit anchor coupling for industrial fluid power and hydraulic plumbing systems requiring a 1-14 male straight thread O-ring to 3/8 inch female NPTF connection at up to 1,000 psi.

Installation Notes

Installation should be performed by a qualified mechanic or pipefitter familiar with hydraulic and fluid power systems. Depressurize and isolate the fluid circuit completely before removing or installing any fittings. Inspect the O-ring for damage before assembly and ensure the female NPTF port is clean and free of debris. Refer to SAE J530 and SAE J531 torque and assembly guidelines for proper make-up procedure.
