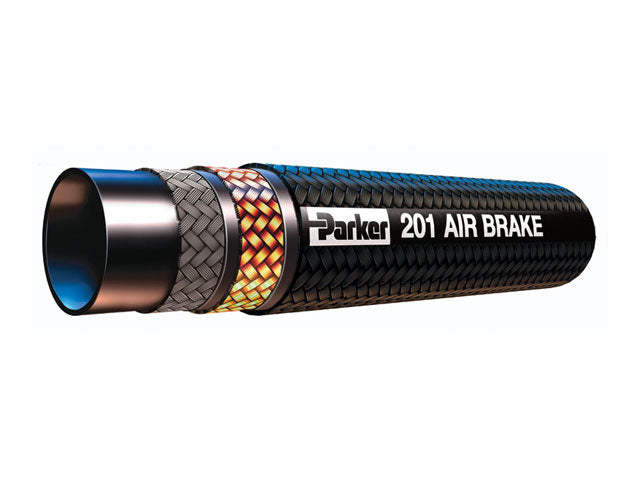

Parker 201-4-RL 201 Series Low Pressure Rubber Transportation Hose

Product Description

The Parker 201-4-RL is a low pressure rubber transportation hose designed for air-brake systems and various transportation needs. This hose is compatible with petroleum-based hydraulic fluids, lubricating oils, diesel fuels, and antifreeze solutions. It features a synthetic rubber inner tube, reinforced with a combination of fiber braid and steel braid for enhanced durability.

• Inner diameter of zero point one eight eight inches.
• Working pressure capacity of three thousand PSI (two hundred ten bar).
• Suitable for applications in transportation and air brake systems.

Product Highlights

A reliable choice for low-pressure applications in air brake systems and transportation needs.

Product Information

Standard Information

• Manufacturer: Parker
• Min Order Quantity: 1

Technical Specifications

• Inner Diameter: 0.188 Inch
• Working Pressure: 3000 PSI (210 bar)
• Material: Rubber
• Mating Fitting Series: 26, 20, 22
• Application: Transportation
• Hose Category: Transportation
• Hose Pressure Range: Low
• Specification: SAE 100R5 SAE J1402 AII, D.O.T. FMVSS 106 AII - AIR BRAKE
