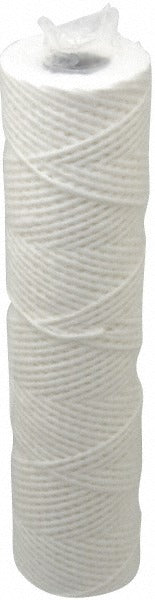

Parker 19R10S String-wound Cartridge Filter 10 Micron

Product Description

The PARKER 19R10S is a string-wound depth cartridge filter designed for plumbing and liquid filtration applications. It features a cotton winding over a stainless steel core, providing a 10-micron nominal filtration rating that captures sediment, rust, sand, and other particulates from water lines. The 2.5-inch outside diameter and 10-inch length make it a standard-format cartridge compatible with common filter housings used in residential and light commercial plumbing systems. The FDA-grade cotton material and stainless steel core allow operation up to 250 degrees F, making it suitable for both cold and hot water service. Licensed plumbers and water treatment technicians are the typical installers.

This cartridge filter is suited for potable water systems, process water lines, and general plumbing filtration where sediment control is required. Its string-wound construction provides graduated density filtration, with finer filtration at the core and coarser filtration at the outer layers. This depth-loading design extends service life compared to surface-only filter media. It is commonly installed upstream of water heaters, appliances, fixtures, or other equipment that requires clean, particulate-free supply water.

Key Features

• 10-micron nominal rating captures fine sediment, rust, and particulates
• String-wound cotton construction for depth-loading and extended filter life
• Stainless steel core provides structural support and corrosion resistance
• FDA-grade cotton material suitable for potable water and food-service applications
• Rated to 250 degrees F for hot water and elevated-temperature service
• Standard 2.5-inch OD by 10-inch length fits common filter housings

Compatibility

Designed as an OEM-style replacement cartridge for standard 10-inch filter housings accepting a 2.5-inch outside diameter string-wound cartridge. Verify housing inlet and outlet connections before installation.

Installation Notes

Installation is typically performed by a licensed plumber or qualified water treatment technician. Shut off the water supply and relieve system pressure before opening the filter housing to replace the cartridge. Follow IPC and local plumbing code requirements for potable water filtration installations. Do not exceed the rated maximum working temperature or pressure of the filter housing assembly.
