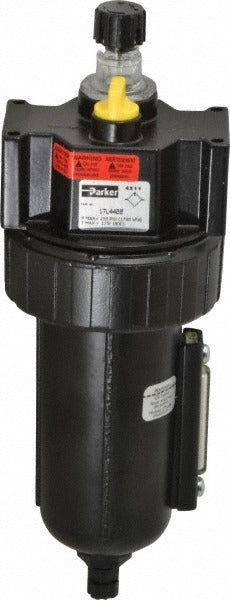

Parker 17L44BE Compressed Air Lubricator 90 Cfm 3/4 Npt

Product Description

The PARKER 17L44BE is a standard compressed air lubricator designed to deliver controlled oil mist to pneumatic tools, cylinders, valves, and other air-operated equipment. Part of the Parker Series 17L, this unit accepts a 3/4 inch NPT port and handles up to 90 CFM of airflow, making it well suited for moderate to high-demand compressed air systems. The body is constructed from zinc and the bowl is metal, offering durability in typical industrial and mechanical service environments. A manual drain and built-in sight glass support straightforward maintenance and oil-level monitoring. Nitrile seals provide compatibility with standard compressor oils. Qualified pneumatic technicians and millwrights are the primary installers.

This lubricator is applicable to industrial and commercial pneumatic systems where consistent tool lubrication is required inline. It is modular-connection compatible, allowing it to be integrated into filter-regulator-lubricator (FRL) assemblies. Typical installation scenarios include shop air lines, production equipment, and compressed air distribution drops servicing impact tools, air motors, and actuators. The 90 CFM rating supports multiple tool drops or larger single-tool demand. With a minimum working temperature of 32 degrees F, this unit is suited for indoor or climate-controlled environments.

Key Features

• 3/4 inch NPT port with 90 CFM maximum flow capacity
• Zinc body and metal bowl construction for durable service
• Manual drain for controlled oil removal during maintenance
• Built-in sight glass for visual oil level monitoring without disassembly
• Modular connection compatible for use in FRL assembly configurations
• Nitrile seals rated for standard pneumatic lubricant compatibility

Compatibility

Designed as an OEM-style inline lubricator for compressed air systems using 3/4 inch NPT connections. Modular connection support allows integration with compatible Parker Series 17L filter and regulator units.

Installation Notes

Installation should be performed by a qualified pneumatic technician or pipefitter. Depressurize and lock out the compressed air supply before installing or servicing this lubricator. Confirm that thread sealant or PTFE tape is applied per shop practice to all NPT connections to prevent air leaks. Do not exceed the rated flow or operating temperature range during service.
