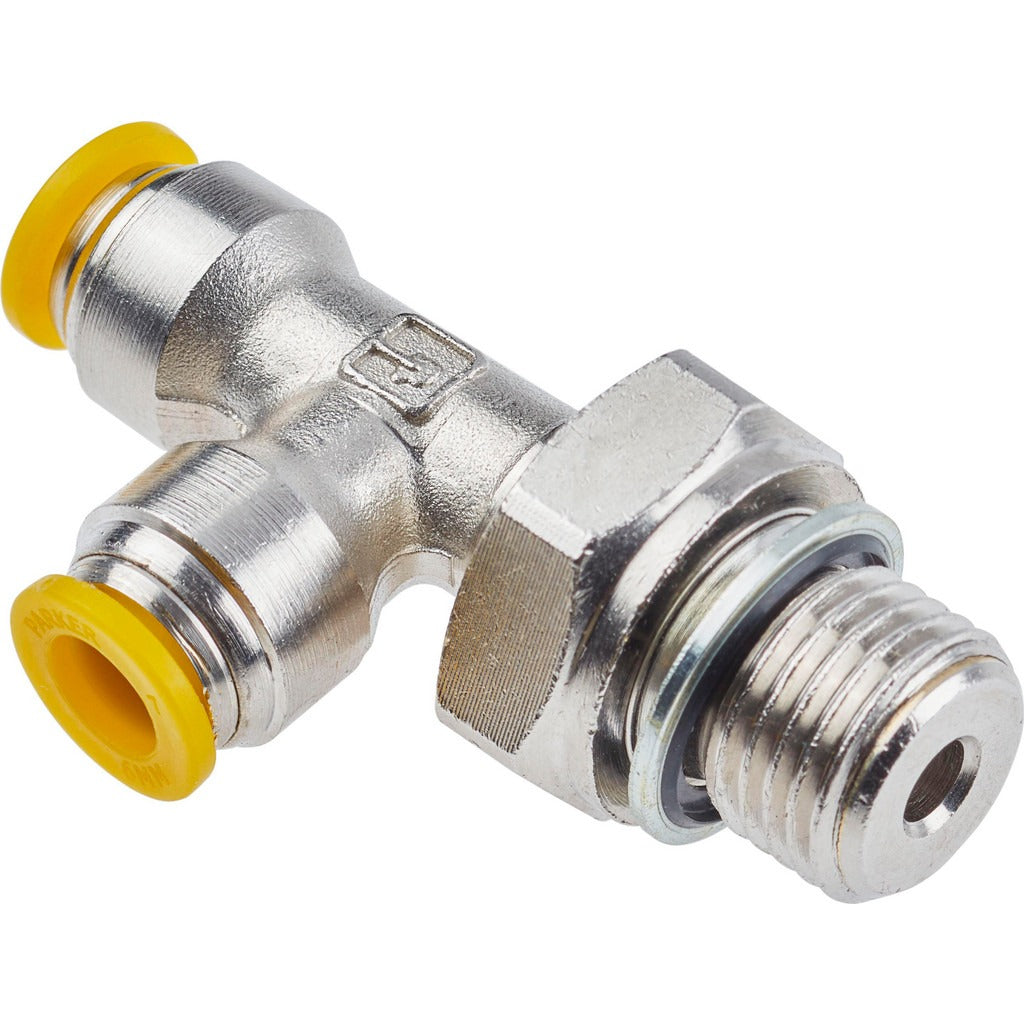

Parker 171PLP-8M-2G Swivel Male Run Tee 8mm 300 Psi

Product Description

The PARKER 171PLP-8M-2G is a push-to-connect swivel male run tee fitting designed for pneumatic and fluid tubing systems. It accepts 8mm outside diameter tubing on both inline tube ports and terminates with a BSPP male thread on the branch port. Constructed from nickel-plated brass with a silicone-free grease lubricant, this fitting is rated for up to 300 psi working pressure and a temperature range of 0 degrees F to 200 degrees F. The swivel feature on the male thread end allows for easier installation into fixed ports without twisting the connected tubing. Licensed HVAC technicians, plumbers, and industrial piping contractors install this type of fitting in compressed air, pneumatic control, and fluid distribution assemblies.

This fitting is suited for applications requiring a branch connection off an existing tube run while maintaining a straight inline flow path. The push-to-connect tube ports allow tool-free insertion and secure retention of 8mm OD tubing, making it practical for service and panel-build work where speed matters. The UL94 V-0 flame resistance rating and silicone-free construction make it appropriate for environments with ignition concerns or where silicone contamination is not acceptable, such as certain pneumatic control circuits and some HVAC applications.

Key Features

• Push-to-connect ports accept 8mm OD tubing without tools or ferrules
• Swivel male branch port simplifies threading into fixed ports without rotating the body
• Nickel-plated brass construction resists corrosion in pneumatic and light fluid service
• Rated to 300 psi maximum working pressure
• Operating temperature range of 0 degrees F to 200 degrees F
• UL94 V-0 flame resistance rating and silicone-free grease for compatibility-sensitive systems

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic tubing systems using 8mm OD tube and BSPP male thread connections.

Installation Notes

Depressurize and de-energize the system completely before removing or installing any push-to-connect fitting. Insert tubing fully into the fitting until it seats against the internal stop to ensure a proper seal. To release tubing, depress the release button while pulling the tube back. Verify that the BSPP male thread is compatible with the receiving port thread form before installation, as BSPP is not interchangeable with NPT.
