Parker 170C-6-6 Compression Fitting 170C

Product Description

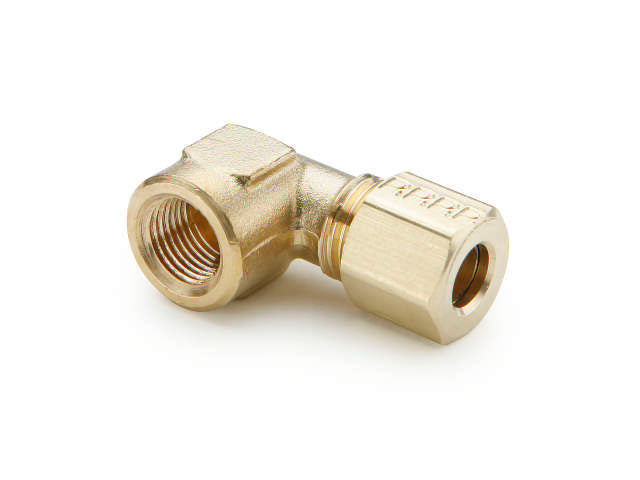

The Parker 170C-6-6 Compression Fitting is designed to connect tubes with a reliable female elbow configuration at a ninety-degree angle. This product requires flaring, soldering, or additional preparation of tubing for assembly, making it suitable for a variety of plumbing tasks.

• Constructed from durable brass material
• Meets the functional requirements of SAE J-512
• Listed with Underwriter’s Laboratories for flammable liquids

Product Highlights

This compression fitting is ideal for both residential and commercial applications, ensuring a strong and leak-proof seal for your liquid transport needs.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 170C-6-6

Technical Specifications

• Outer Diameter 1: 3/8 Inch
• Thread 1: 3/8 NPT
• Material: Brass
• UOM: EA
• Series: Compression
• Configuration Type: Tube to Female
• Configuration Sub-Type: Female Elbow 90°
• Parker Division: Fluid Systems Connector (Brass Products)
