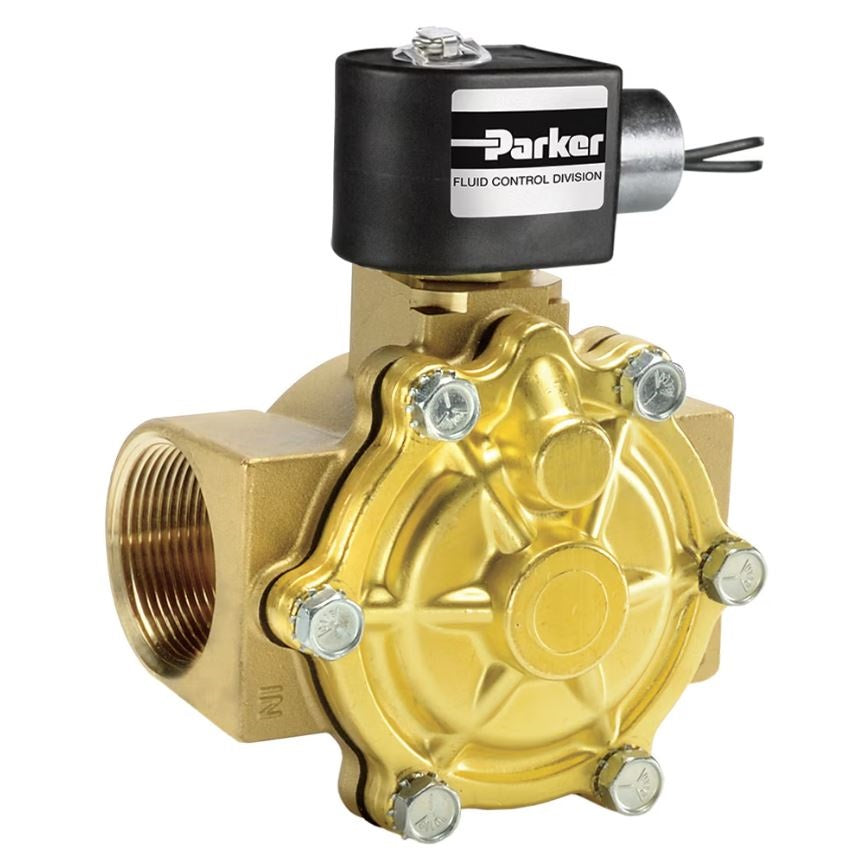

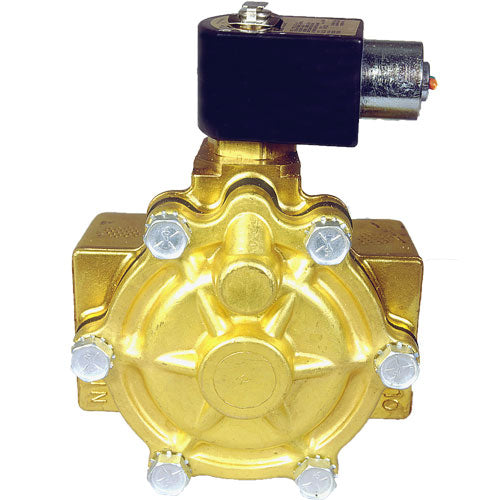

Parker 16F24O2364ACF4C05 2-Way Normally Open Solenoid Valve

Product Description

The Parker 16F24O2364ACF4C05 is a 2-way normally open solenoid valve suited for general purpose applications. It has a brass body and features a one-inch orifice with NPT port connections. This valve operates with a minimum pressure differential of five psi, making it effective for a range of media types, including irrigation and fire suppression systems.

• 2-way normally open configuration
• Brass construction for durability
• Internal pilot operation with a minimum pressure differential of five psi

Product Highlights

Ideal for various applications such as irrigation and fire systems, this valve offers reliable operation and construction quality.

Product Information

Standard Information

• Brand: Parker
• MPN: 16F24O2364ACF4C05

Technical Specifications

• Sub Brand: Skinner
• Valve Configuration: 2 Way
• Body Material: Brass
• Orifice Size: 1 inch
• Function: Normally Open
• Port Size: 1 inch
• Power Consumption: 11.0 W
• Actuation Type: Internally Piloted
• Maximum Fluid Temperature: 180.0 °F
• Maximum Ambient Temperature: 130.0 °F
• Maximum Pressure Differential: 125.0 psi
• Minimum Pressure Differential: 5.0 psi
• Media: General Purpose
• Ingress Protection Rating: NEMA 4, 4X
• Main Flow Coefficient: 13.0 Cv
• Input Voltage: 120/60, 110/50 VAC
• Seal Material: NBR
• Connection Type: FNPT
• Number Of Ports/Ways: 2-Way
• Coil Wattage: 11-Watts
• Coil Class: Standard Coil
