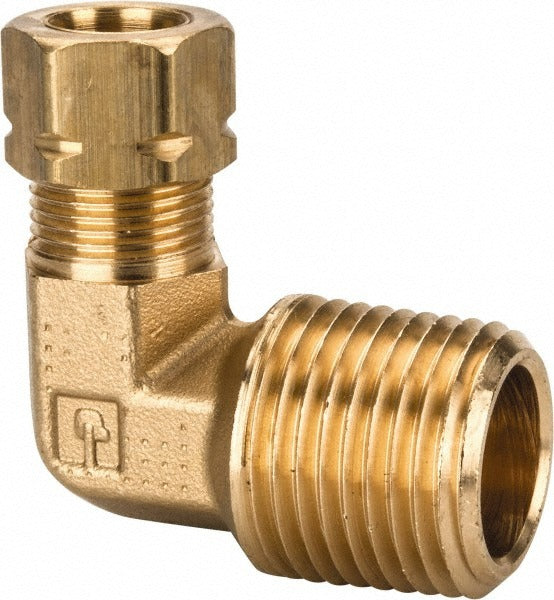

Parker 169CA-6-8 Brass Compression Male Elbow 1/2-14 Nptf

Product Description

The PARKER 169CA-6-8 is a brass compression tube male elbow fitting designed to connect a compression tube line to a male NPT threaded port at a 90-degree angle. Built from brass for corrosion resistance and durability, this fitting handles working pressures up to 1000 psi and temperatures ranging from -65 degrees F to 250 degrees F. The compression-to-MNPT configuration eliminates the need for soldering or flaring, making it a practical choice for plumbers, HVAC technicians, and fluid-system installers working on pressurized lines in both residential and light commercial applications.

This fitting is suited for use in hydraulic, pneumatic, and fluid-transfer systems where a reliable 90-degree directional change is needed between a compression tube and a male NPT threaded connection. It is commonly installed in HVAC refrigerant and water lines, plumbing systems, and instrumentation tubing runs where space constraints require an elbow configuration rather than a straight fitting. The NPTF thread standard ensures a pressure-tight seal without relying solely on thread sealant tape.

Key Features

• Brass construction provides corrosion resistance for water, air, and compatible fluid service
• Compression x MNPT end connections eliminate soldering or flaring at the tube end
• 1/2-14 NPTF thread delivers a pressure-tight mechanical seal
• Rated to 1000 psi maximum working pressure
• Wide temperature range: -65 degrees F to 250 degrees F
• 90-degree male elbow routes tubing where straight fittings will not fit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube systems requiring a 1/2-14 NPTF male threaded port connection in residential and commercial fluid-handling applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician. Shut off and depressurize the system completely before removing or installing any fitting. Hand-tighten the compression nut onto the tube, then use an appropriately sized wrench to achieve a secure, leak-free connection — avoid over-tightening, which can deform the compression sleeve. Apply thread sealant or PTFE tape to the MNPT threads as required by local plumbing or mechanical codes.
