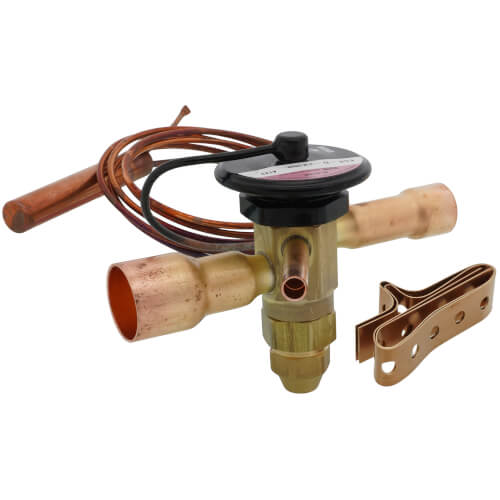

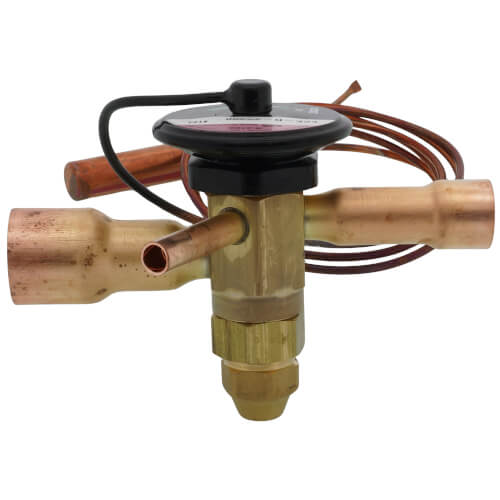

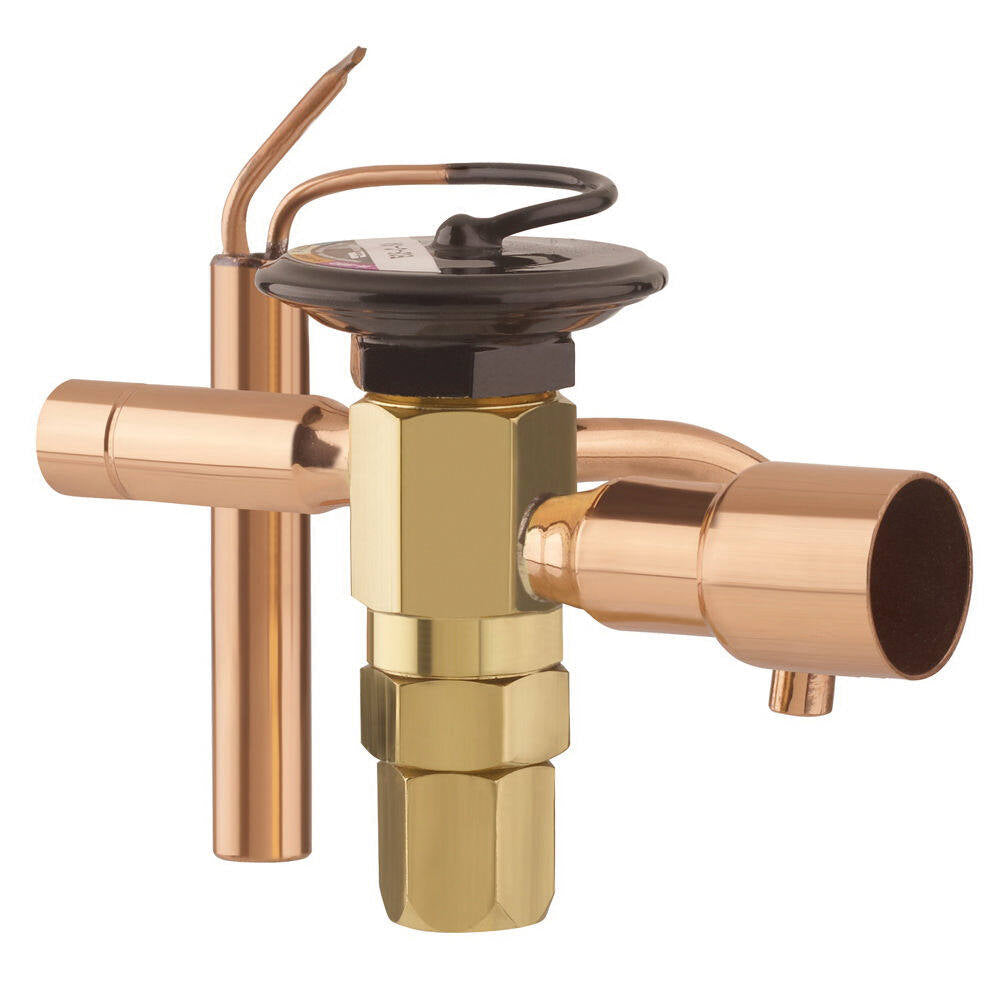

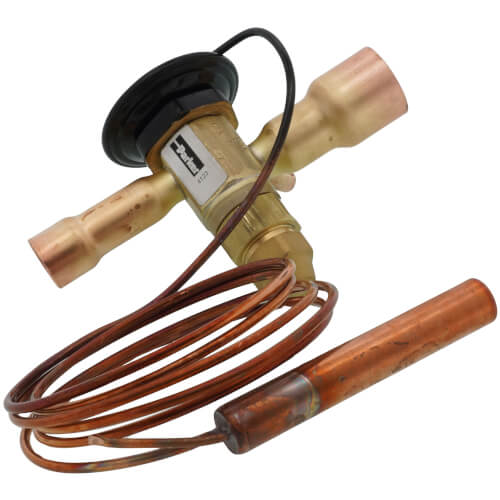

Parker 168736P ECE-D-ZX200 Thermal Expansion Valve 5 to 8 Ton

Product Description

The Parker 168736P ECE-D-ZX200 is a thermostatic expansion valve with a brass body and balanced port design. It is designed for refrigeration and air conditioning applications. The valve features extended ODF solder connections and a removable power element. It ensures consistent operation across residential and commercial HVAC systems.

• Extended ODF solder connections
• Balanced port design
• Field adjustable superheat

Product Highlights

The Parker thermostatic expansion valve is suitable for small chillers, freezers, air conditioning, refrigerated cases, and walk-in boxes.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: 168736P
• Country of Origin: USA

Technical Specifications

• Inlet Size: 5/8" ODF
• Outlet Size: 7/8"
• Type: 5-8
• Refrigerant: R-410A
• Equalizer Type: External
• Capillary Length: 60"
• Application: Small Chillers, Freezers, Air Conditioning, Refrigerated Cases, Walk-in Boxes
• Connection Type: ODF
• Ton: 5 to 8
• Refrigerant Type: R-410A
• Equalizer: 1/4" ODF
• Brand: Parker Sporlan
• Capacity: 5 Ton Thru 8 Ton
• Composition: Extended ODF Solder Connections, Brass Body, Balanced Port Design, Removable Power Element, Field Adjustable Superheat
• Inlet Connection Size: 5/8" ODF
• Maximum Working Pressure: 700 psi
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Outlet Connection Size: 7/8" ODF
• Overall Length: 3.36"
• Prop 65: true
• Country of Origin: USA
• OEM: Parker Hannifin Corporation
• OEM #: 168736P
• MPN: 168736P
