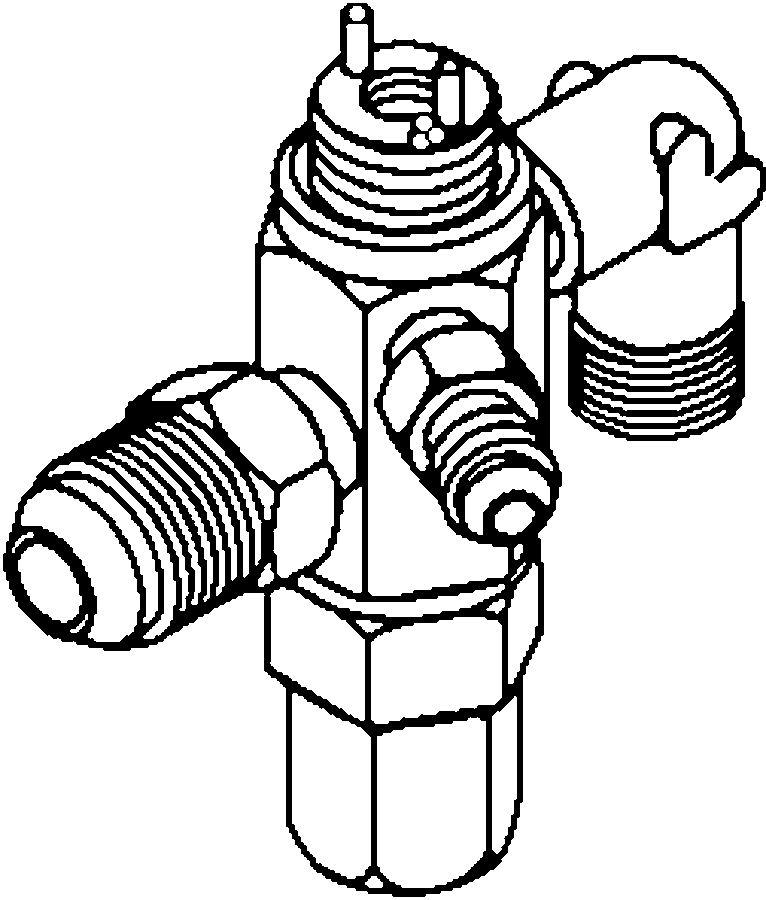

Parker 168005 TEV QE Body

Product Description

The Parker 168005 TEV QE Body is engineered for use in refrigeration systems. This thermostatic expansion valve (TXV) body features a replaceable cartridge design that simplifies maintenance. It is suitable for small refrigeration systems, including coolers, freezers, refrigerated cases, air conditioning units, and heat pumps. The valve body is designed with SAE connection types and includes an external equalizer.

• 3/8 x 1/2 SAE inlet/outlet connection sizes
• Includes an external equalizer with 1/4 port size
• Constructed with a robust brass body

Product Highlights

This TEV body is ideal for efficient temperature control in various refrigeration applications.

Product Information

Standard Information

• Brand: Parker Sporlan
• UPC: 687472202455

Technical Specifications

• Manufacturer Part Number: 168005
• Connection Type: SAE
• Inlet Connection Size: 3/8 SAE
• Outlet Connection Size: 1/2 SAE
• Equalizer: External
• Port Size: 1/4
• Material: Brass
• Maximum Working Pressure: 450 psi
• Weight: 0.84
• Height: 3.5
• Length: 2.75 inches
• Width: 4.0 inches
