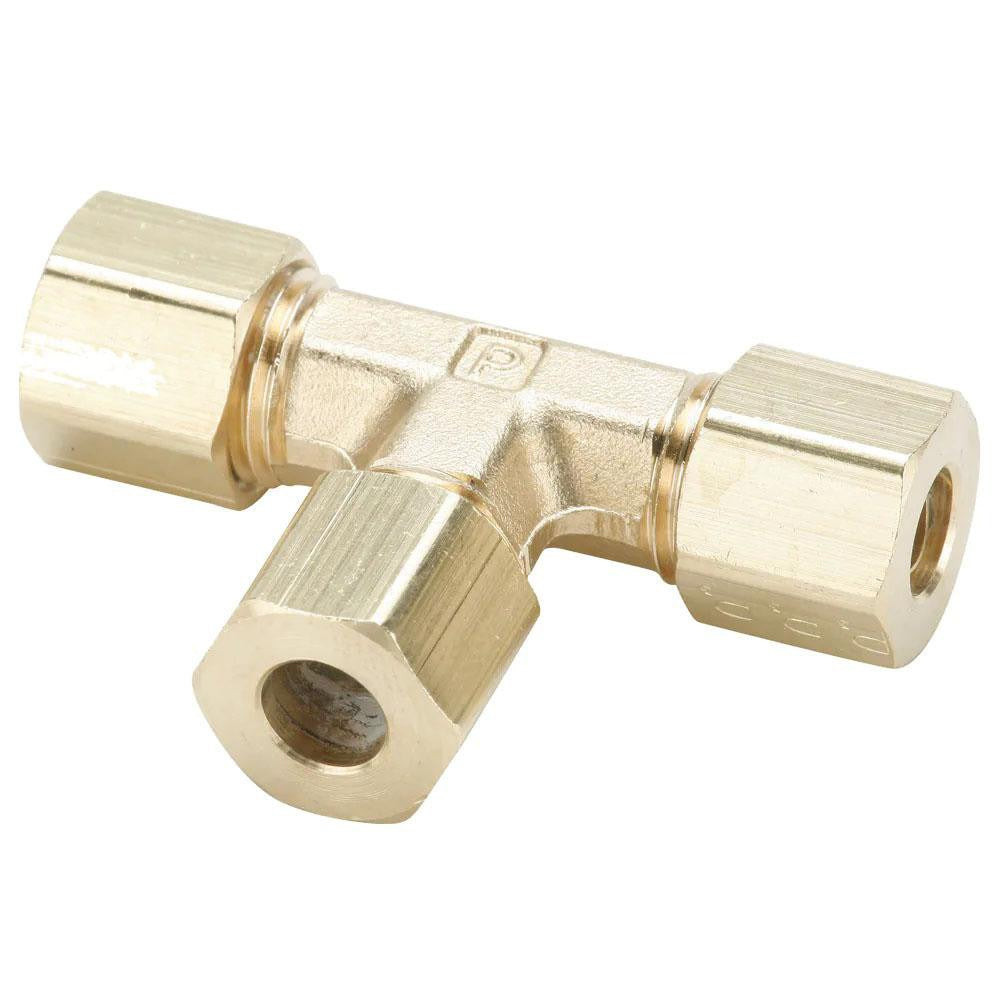

Parker 164C-6-6-4 Brass Compression Tee Fitting

Product Description

The PARKER 164C-6-6-4 is a three-way brass compression tube union configured as a tee, with compression end connections on all three ports. It is designed to split or combine tubing runs in fluid or gas distribution systems. Rated to 200 psi maximum working pressure and a temperature range of -65 degrees F to 250 degrees F, this fitting suits demanding service environments. Manufactured to SAE J-512 standards, it is installed by HVAC technicians, plumbers, and refrigeration mechanics working with compression-style tubing assemblies.

This tee fitting is used in residential and light commercial applications where a tubing run must branch in three directions using compression-style connections. Typical installations include refrigerant line sets, fuel gas distribution, hydraulic control tubing, and instrumentation plumbing. Its all-compression configuration allows tool-assisted installation without soldering or threading, making it practical in tight spaces or field retrofit situations.

Key Features

• All three ports use compression end connections for consistent, leak-resistant joints
• Brass construction provides corrosion resistance suitable for a wide range of media
• Rated to 200 psi maximum working pressure
• Temperature range of -65 degrees F to 250 degrees F
• Meets SAE J-512 standards for compression tube fittings
• Tee shape allows a single line to branch into two separate runs

Compatibility

Designed as an OEM-style compression tee union for use in tubing systems requiring SAE J-512 compliant compression fittings across HVAC, refrigeration, plumbing, and instrumentation applications.

Installation Notes

Installation is performed by a licensed HVAC technician, plumber, or refrigeration mechanic depending on the application. Always isolate and depressurize the system before disconnecting or installing any compression fitting. Hand-tighten the compression nut first, then use a wrench to achieve a secure seat without overtightening the ferrule. Verify joint integrity by pressure-testing the system to the rated working pressure before returning to service.
