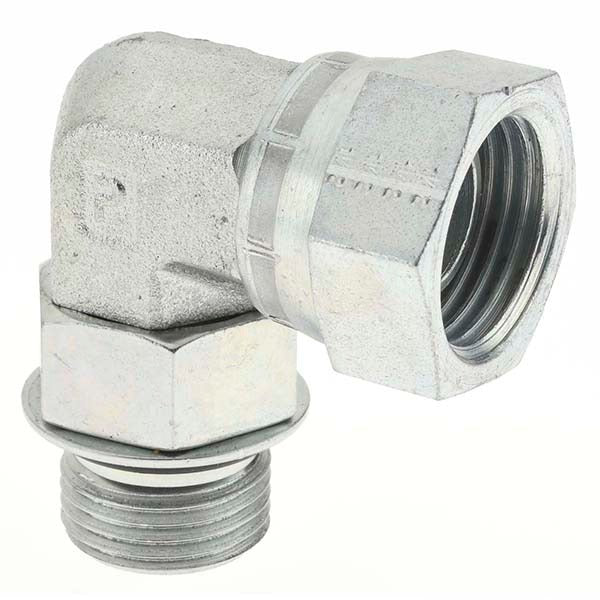

Parker 16265 Hydraulic Hose Swivel Elbow Fitting 5000 Psi

Product Description

The PARKER 16265 is a 90-degree swivel elbow fitting designed for high-pressure hydraulic hose assemblies. Built from steel and rated to 5,000 psi maximum working pressure, it connects a 1/2-inch hydraulic hose to a 3/4-16 SAE O-Ring Boss (ORB) port. The swivel design allows the hose to be positioned and routed without twisting during final assembly, reducing stress on the hose end. It meets SAE standard 140257 and belongs to the Parker Series 2507 fitting family. Hydraulic technicians and fluid power mechanics use this fitting in mobile equipment, industrial machinery, and high-pressure hydraulic circuit construction.

This fitting is suited for hydraulic systems operating up to 5,000 psi where a 90-degree change in hose direction is required at an SAE ORB threaded port. The 3/4-16 thread and 1/2-inch hose compatibility make it a common choice in mobile hydraulics, construction equipment, and industrial power units. The swivel elbow configuration helps manage tight routing spaces and reduces hose assembly strain in fixed installations.

Key Features

• 5,000 psi maximum working pressure rating for demanding hydraulic circuits
• 90-degree swivel elbow allows hose positioning without twisting the hose body
• 3/4-16 SAE O-Ring Boss (ORB) thread connection for reliable, leak-resistant sealing
• Compatible with 1/2-inch hydraulic hose diameter
• Steel construction for durability in high-pressure fluid power applications
• Meets SAE 140257 standard; Parker Series 2507

Compatibility

Designed for use with 1/2-inch hydraulic hose and 3/4-16 SAE ORB threaded ports. Verify thread type and hose size against your specific hydraulic circuit requirements before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Inspect the SAE ORB port and O-ring sealing surface for damage before assembly, and use a new O-ring to ensure a leak-free connection. Torque to the fitting manufacturer specification appropriate for the thread size and material; do not rely on feel alone on high-pressure circuits.
