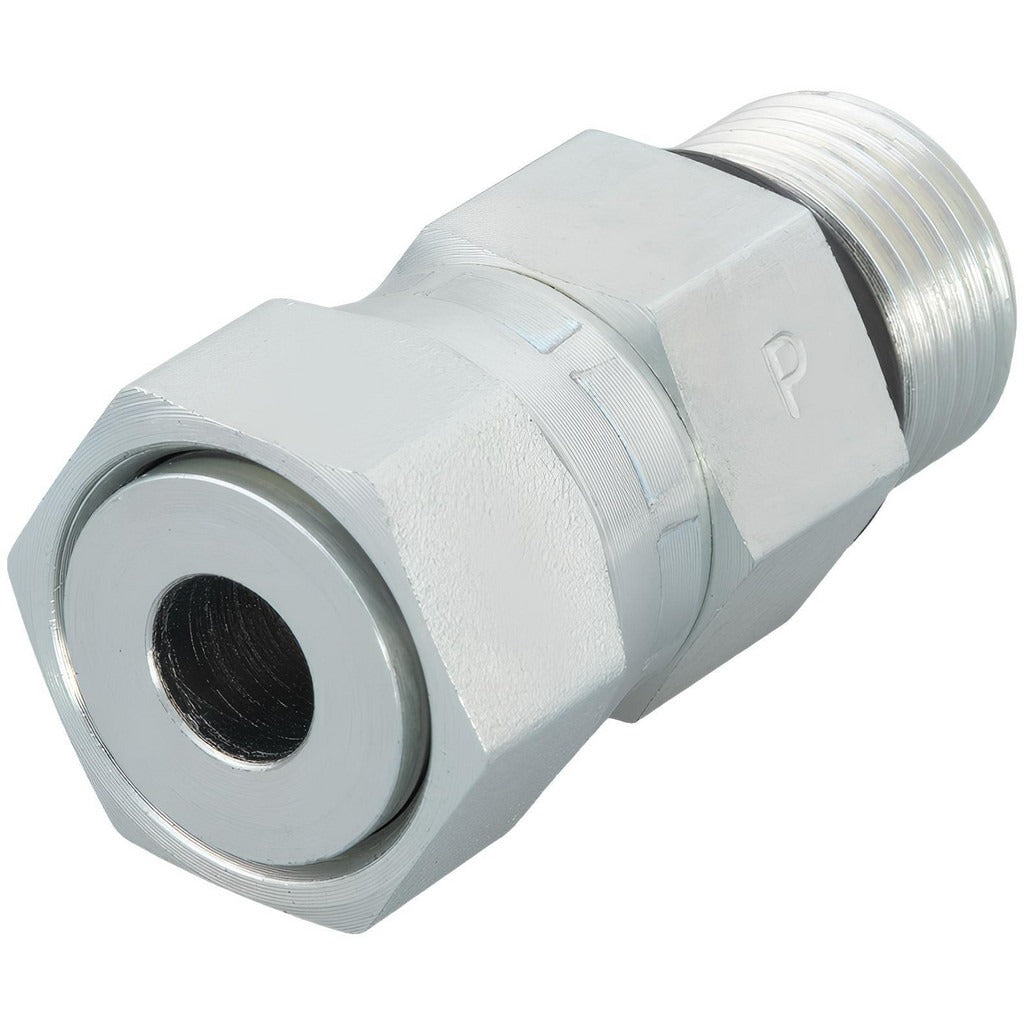

Parker 16 F65OL-S Swivel Connector 1-5/16-12 Orfs Sae-orb

Product Description

The PARKER 16 F65OL-S is a compression tube straight thread swivel connector designed for high-pressure hydraulic and fluid power plumbing. It connects an O-Ring Face Seal (ORFS) tube end to an SAE O-Ring Boss (SAE-ORB) port, providing a leak-resistant, vibration-tolerant joint. The fitting is constructed from steel and is rated to a maximum working pressure of 6000 psi. The tube-side end accepts a 1-inch outside diameter tube, and the straight thread measures 1-5/16-12 UNF. The swivel design allows the tube to be oriented during installation without twisting the assembly, making it a preferred choice for tight or congested plumbing runs. Licensed hydraulic technicians and industrial pipefitters are the primary installers of this fitting.

This connector is suited for mobile hydraulic systems, industrial fluid power circuits, and OEM equipment plumbing where ORFS tube connections must transition to SAE-ORB threaded ports. Typical applications include hydraulic cylinders, pump outlets, valve manifolds, and any high-pressure steel tubing circuit requiring a reliable, reusable mechanical joint. It is appropriate for both original equipment assembly and field service replacement in industrial and heavy-equipment environments.

Key Features

• Straight thread swivel design allows tube orientation adjustment without twisting the assembly
• ORFS x SAE-ORB end connections deliver reliable sealing at both the face seal tube end and the O-ring boss port
• Rated to 6000 psi maximum working pressure for demanding hydraulic service
• Steel construction provides durability in high-load and high-pressure fluid power circuits
• 1-5/16-12 UNF thread size with 1-inch tube outside diameter for a precise, standardized fit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid power systems using 1-inch OD steel tubing terminating at SAE-ORB threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial pipefitter. Depressurize and bleed the hydraulic circuit fully before removing or installing any fittings. Inspect the O-ring face seal surface and the SAE-ORB port seat for nicks or contamination before assembly, and replace O-rings if any damage is present. Follow the applicable equipment manufacturer torque specifications and reference NFPA T3.5.1 or SAE J1453 standards for ORFS fitting assembly guidance.
