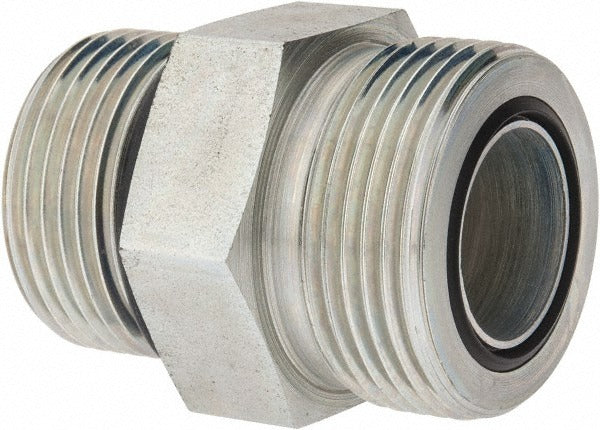

Parker 16 F5OLO-S Straight Thread Connector Orfs Sae-orb

Product Description

The PARKER 16 F5OLO-S is a compression tube straight thread connector designed for high-pressure hydraulic and fluid power plumbing applications. It features an O-Ring Face Seal (ORFS) end on one side and an SAE O-Ring Boss (SAE-ORB) thread on the other, providing a leak-resistant connection between tubing and ported components. Constructed from steel, this fitting handles working pressures up to 6000 psi. It accepts 1 inch OD tubing and uses a 1-5/16-12 UNF thread. Licensed plumbers, hydraulic system technicians, and industrial maintenance professionals are the typical installers of this fitting.

This fitting is suited for use in mobile hydraulic systems, industrial fluid power circuits, and heavy equipment plumbing where a reliable, high-pressure tube-to-port transition is required. The ORFS end minimizes leak paths in vibration-prone environments, while the SAE-ORB port connection offers a widely used standardized interface found on pumps, valves, manifolds, and hydraulic cylinders in both residential-scale and commercial-scale equipment.

Key Features

• ORFS x SAE-ORB end connections for a secure, leak-resistant tube-to-port transition
• Rated for maximum working pressure of 6000 psi
• 1-5/16-12 UNF thread size with O-Ring Face Seal interface
• Accepts 1 inch outside diameter tubing
• Steel construction for durability in demanding hydraulic environments

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems requiring a 1 inch OD tube connection to an SAE-ORB ported component via ORFS interface.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with high-pressure fluid systems. Depressurize and fully isolate the hydraulic circuit before removing or installing any fittings. Inspect the O-ring seating surfaces for damage before assembly and ensure the O-ring is properly seated to achieve a leak-free connection. Follow applicable industry standards for hydraulic fitting installation and torque procedures using calibrated tools.
