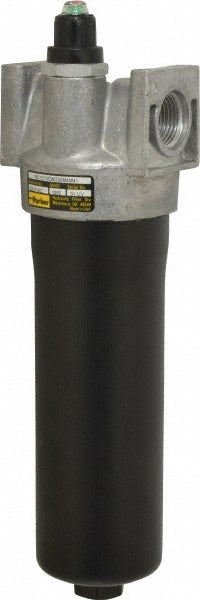

Parker 15CN210QM250M4M41 Hydraulic Filter Element 10 Micron

Product Description

The PARKER 15CN210QM250M4M41 is a hydraulic filter element designed to remove contaminants from hydraulic fluid in industrial and mobile hydraulic systems. Constructed with a microglass filter media, this element delivers a 10-micron filtration rating, capturing fine particulate before it reaches sensitive valves, pumps, and actuators. With an inside diameter of 2.88 inches and an outside diameter of 3.38 inches, it is sized for direct installation into compatible Parker filter housings. The SAE-12 straight thread connection ensures a secure, leak-resistant fit. At 3.5 pounds, it is a solid, well-constructed replacement element suited for routine maintenance by hydraulic technicians and fluid power specialists.

This element is used in hydraulic return-line and pressure-line filter assemblies found in industrial machinery, construction equipment, agricultural equipment, and other fluid power applications. It is installed as part of a scheduled filter change interval to maintain hydraulic fluid cleanliness and protect downstream components. The 10-micron rating makes it appropriate for systems requiring fine filtration where component protection is a priority. Technicians performing preventive maintenance on hydraulic power units will find this element a direct-fit replacement for compatible Parker filter housings using SAE-12 straight thread connections.

Key Features

• 10-micron microglass filter media for fine particulate removal
• SAE-12 straight thread connection for secure, leak-resistant seating
• 2.88 inch inside diameter and 3.38 inch outside diameter for precise housing fit
• Microglass construction offers high dirt-holding capacity compared to cellulose media
• Weighs 3.5 pounds — substantial build suitable for demanding hydraulic environments

Compatibility

Designed as an OEM-style replacement hydraulic filter element for Parker filter housings with SAE-12 straight thread connections and a 2.88 inch bore diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system fully before removing the filter housing or element. Dispose of used hydraulic fluid and the spent element in accordance with local regulations. Inspect the housing O-ring or seal on reassembly and replace it if any wear or deformation is present.
