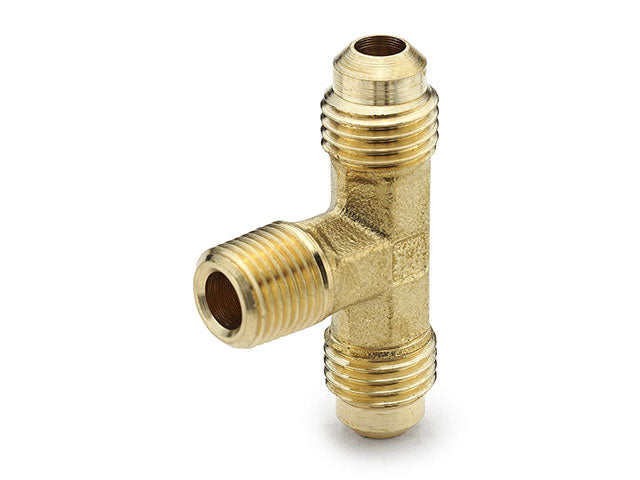

Parker 145F-4-4 Male Branch Tee 145F Flare 1/4 Inch

Product Description

The Parker 145F-4-4 Male Branch Tee is a flare fitting suitable for connecting tubing commonly used in various applications. It meets SAE J512 and J513 standards and is certified by Underwriter's Laboratories. This fitting is made for use with copper, brass, aluminum, or steel tubing that can be flared to forty-five degrees.

• MEETS SAE J512 AND J513
• FOR USE WITH FLARE TUBE CONNECTIONS
• COMPATIBLE WITH SEVERAL METAL TUBING TYPES

Product Highlights

The Parker Male Branch Tee is designed for secure connections in fluid systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 145F-4-4

Technical Specifications

• Material: Brass
• Outer Diameter 1: 1/4 Inch
• Outer Diameter 2: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 7/16-20 UN/UNF
• Thread 3: 1/4 NPT
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Branch Tee
• Pressure Rating: 1400 PSI
• Operating Temperature: -65°F to +250°F
• Series: 45° Flare
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
• SAE Compliance: J512 and J513
• SAE Reference: SAE 010425
• Body Shape: Forged
