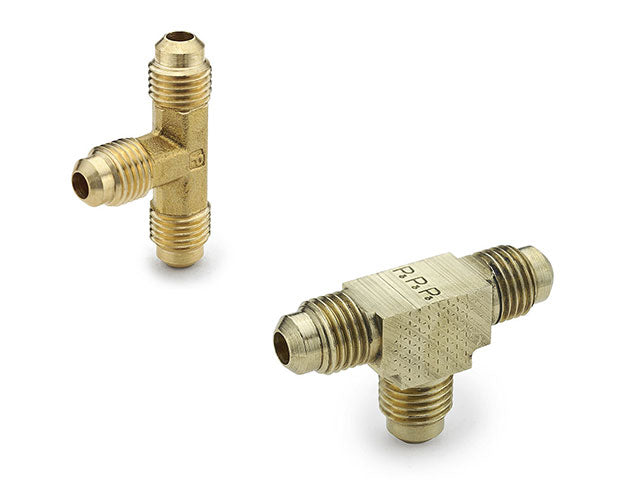

Parker 144F-10 Union Tee 144F-244F

Product Description

The Parker 144F-10 is a union tee fitting designed for applications requiring 45-degree flaring. This fitting complies with the standards set by SAE J512 and J513. It is suitable for use with copper, brass, aluminum, or steel tubing that can be flared at a 45-degree angle.

• Meets SAE J512 and J513 standards
• Constructed from durable brass
• Rated up to 650 PSI

Product Highlights

The Parker 144F-10 provides reliable connections in various fluid systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 144F-10

Technical Specifications

• Outer Diameter 1: 5/8 Inch
• Outer Diameter 2: 5/8 Inch
• Outer Diameter 3: 5/8 Inch
• Thread 1: 7/8-14 UN/UNF
• Thread 2: 7/8-14 UN/UNF
• Thread 3: 7/8-14 UN/UNF
• Material: Brass
• Series: 45° Flare
• Configuration Type: Flare to Flare
• Configuration Sub-Type: Union Tee
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 650 PSI
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
• SAE Compliance: J512 and J513
• SAE Reference: SAE 010401
• Body Shape: Forged
