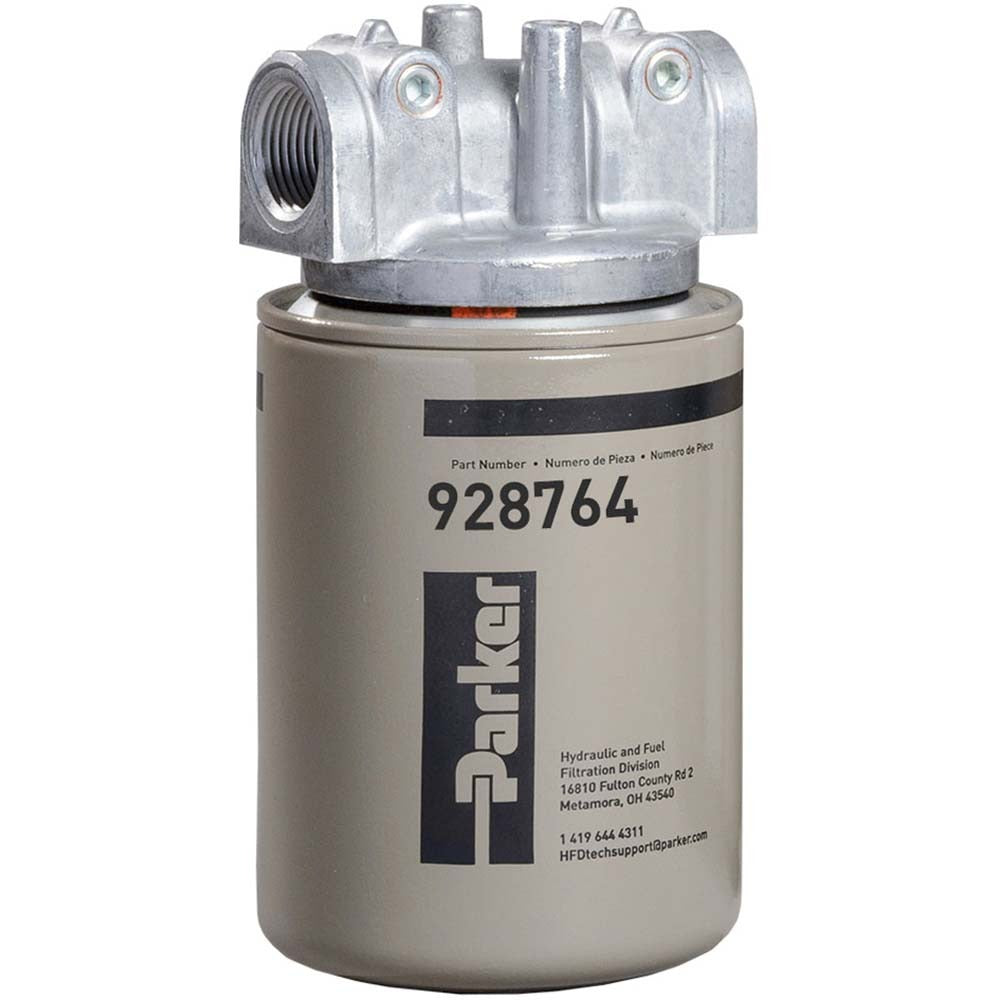

Parker 12AT120BBPGN12H Hydraulic Filter Assembly 20 Micron

Product Description

The PARKER 12AT120BBPGN12H is a hydraulic filter assembly rated at 20 microns, designed to remove particulate contamination from hydraulic fluid circuits. The assembly uses a fiberglass microglass filter media housed in a low carbon steel and aluminum body. It accepts a 3/4 inch NPTF threaded port connection and is rated for operating pressures up to 150 psi. The operating temperature range spans -40 to 225 degrees F, making it suitable for a wide range of hydraulic system environments. Nitrile seals provide reliable fluid compatibility with common petroleum-based hydraulic fluids. This filter is installed by hydraulic system technicians and industrial maintenance professionals.

This filter assembly is suited for use in mobile and stationary hydraulic systems where particulate control is required to protect pumps, valves, and actuators. The 3/4 inch NPT port size fits common hydraulic plumbing configurations found in industrial equipment, construction machinery, and fluid power systems. The 20-micron microglass media provides a balance of filtration efficiency and flow capacity appropriate for medium-duty hydraulic circuits. The compact assembly format allows for straightforward integration into existing filter housings or inline plumbing runs where a complete filter unit is needed.

Key Features

• 20-micron fiberglass microglass filter media for particulate removal in hydraulic circuits
• Low carbon steel and aluminum body construction for durability and weight efficiency
• 3/4 inch NPTF threaded port for standard hydraulic plumbing connections
• Rated to 150 psi maximum operating pressure
• Wide operating temperature range of -40 to 225 degrees F
• Nitrile seals compatible with petroleum-based hydraulic fluids

Compatibility

Designed as an OEM-style replacement or service filter assembly for hydraulic systems requiring a 3/4 inch NPT connection and 20-micron filtration capability.

Installation Notes

Installation should be performed by a qualified hydraulic system technician. Depressurize and de-energize the hydraulic system fully before removing or installing any filter assembly. Use appropriate thread sealant rated for hydraulic service on the NPT connections and verify torque is applied to manufacturer guidelines for the mating port material. Inspect seals for proper seating before returning the system to service and check for leaks at operating pressure during initial startup.
