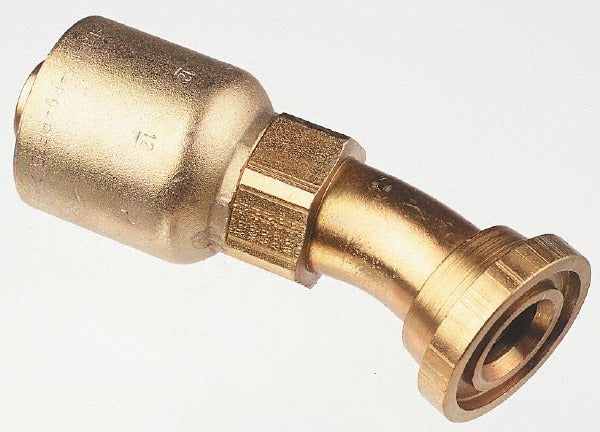

Parker 11643-12-12 Hydraulic Hose Elbow 3/4 Inch

Product Description

The PARKER 11643-12-12 is a hydraulic hose elbow fitting designed to connect hose assemblies at an angle within high-pressure hydraulic systems. This elbow accepts a -12 hose size with a 3/4 inch hose diameter and a 3/4 inch thread size, making it a standard fitting for routing hydraulic lines where a straight connection is not practical. It is used in mobile, industrial, and stationary hydraulic systems where directional changes in plumbing are required. Licensed hydraulic technicians and mechanical contractors typically install this type of fitting during hose assembly fabrication or field repairs.

This fitting is suited for hydraulic systems requiring a -12 hose connection with 3/4 inch threading. Common applications include mobile equipment hydraulics, industrial machinery, and hydraulic power unit plumbing where angled routing reduces stress on hose ends and helps maintain clean, organized line routing within tight equipment bays or enclosures.

Key Features

• Elbow configuration allows angled hose routing to reduce line stress and clearance issues
• -12 hose size with 3/4 inch hose diameter for standard hydraulic hose assemblies
• 3/4 inch thread size for compatibility with standard hydraulic port sizes
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style replacement or serviceable fitting for hydraulic hose assemblies using -12 hose size and 3/4 inch thread connections in mobile and industrial hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanical tradesperson familiar with hydraulic system service. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect thread condition and sealing surfaces before assembly, and use appropriate hydraulic-rated thread sealant or sealing method as required by the fitting type. Follow equipment manufacturer torque guidelines and applicable industry standards for hydraulic fitting installation.
