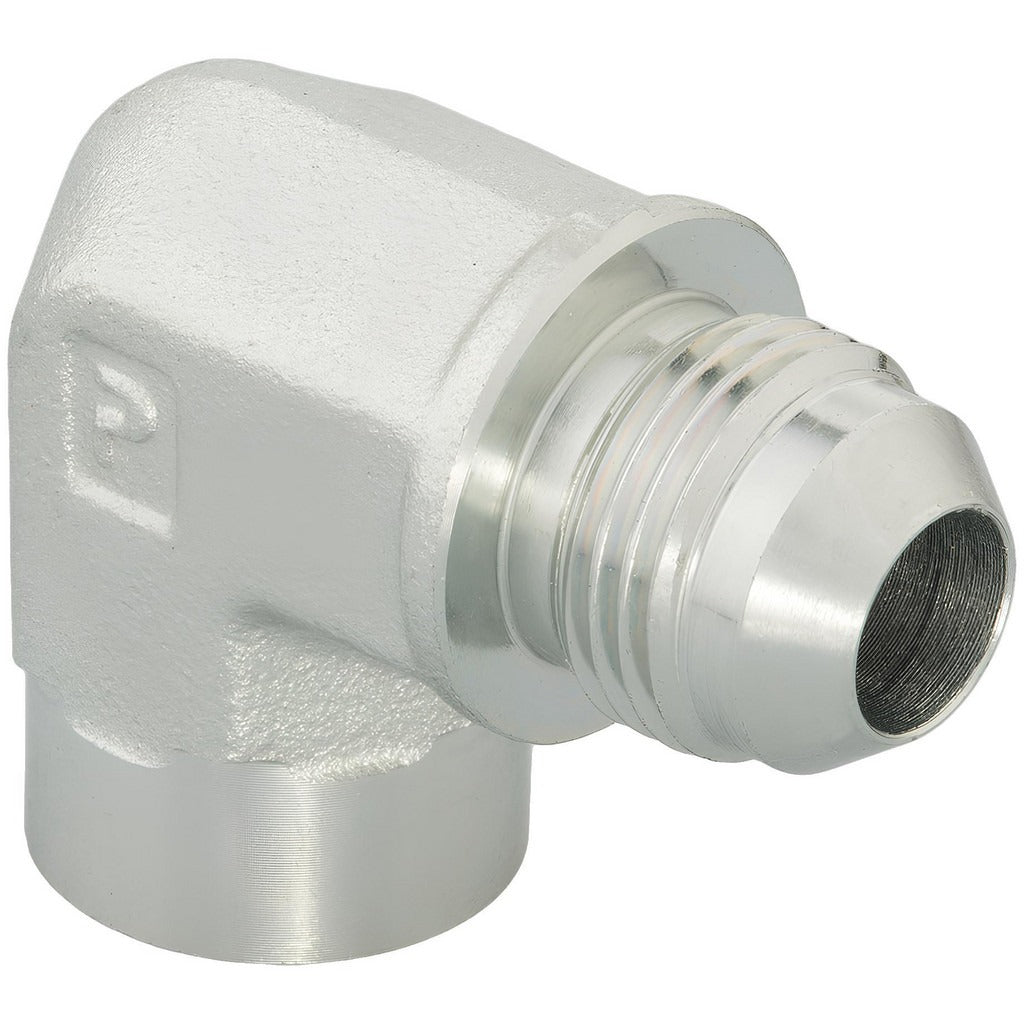

Parker 10 Dtx-s Steel Flared Tube Female Elbow 5/8 in

Product Description

The PARKER 10 DTX-S is a steel flared tube female elbow fitting designed for high-pressure hydraulic and fluid power lines. It connects a 37-degree flared tube end to a female NPTF threaded port, creating a leak-resistant, permanent-style joint. With a maximum working dynamic pressure of 3000 psi and a 5/8 inch tube outside diameter, this fitting is built for demanding industrial and mobile equipment plumbing. Plumbers, pipefitters, and hydraulic technicians install this type of fitting when routing tubing through a 90-degree direction change into a fixed female threaded port.

This elbow fitting is used in hydraulic systems, fluid transfer lines, and pneumatic plumbing where a 37-degree flare connection meets an NPTF female port at a 90-degree angle. Typical applications include industrial machinery, mobile hydraulic equipment, and heavy-duty plumbing assemblies requiring a reliable steel fitting at a change-of-direction point. The NPTF thread form provides a pressure-tight mechanical seal without relying solely on thread sealant.

Key Features

• 37-degree flare end connection compatible with standard JIC-style flared tubing
• Female NPTF thread provides a pressure-tight seal at the port connection
• Steel construction rated for 3000 psi maximum dynamic working pressure
• 5/8 inch tube outside diameter accommodates standard flared tube lines
• 90-degree elbow body routes tubing cleanly through direction changes

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid power systems using 5/8 inch OD flared tubing with a 1/2 inch NPTF female threaded port connection.

Installation Notes

Installation should be performed by a qualified pipefitter, hydraulic technician, or plumber familiar with flared tube fittings and NPTF thread standards. Depressurize and isolate the hydraulic or fluid system completely before removing or installing any fittings. Inspect the flared tube end for cracks, ovality, or surface damage before assembly, as a compromised flare will not seal correctly at 3000 psi. NPTF threads are designed to seal on the thread form itself, but always verify thread engagement and system integrity before returning the line to service.
