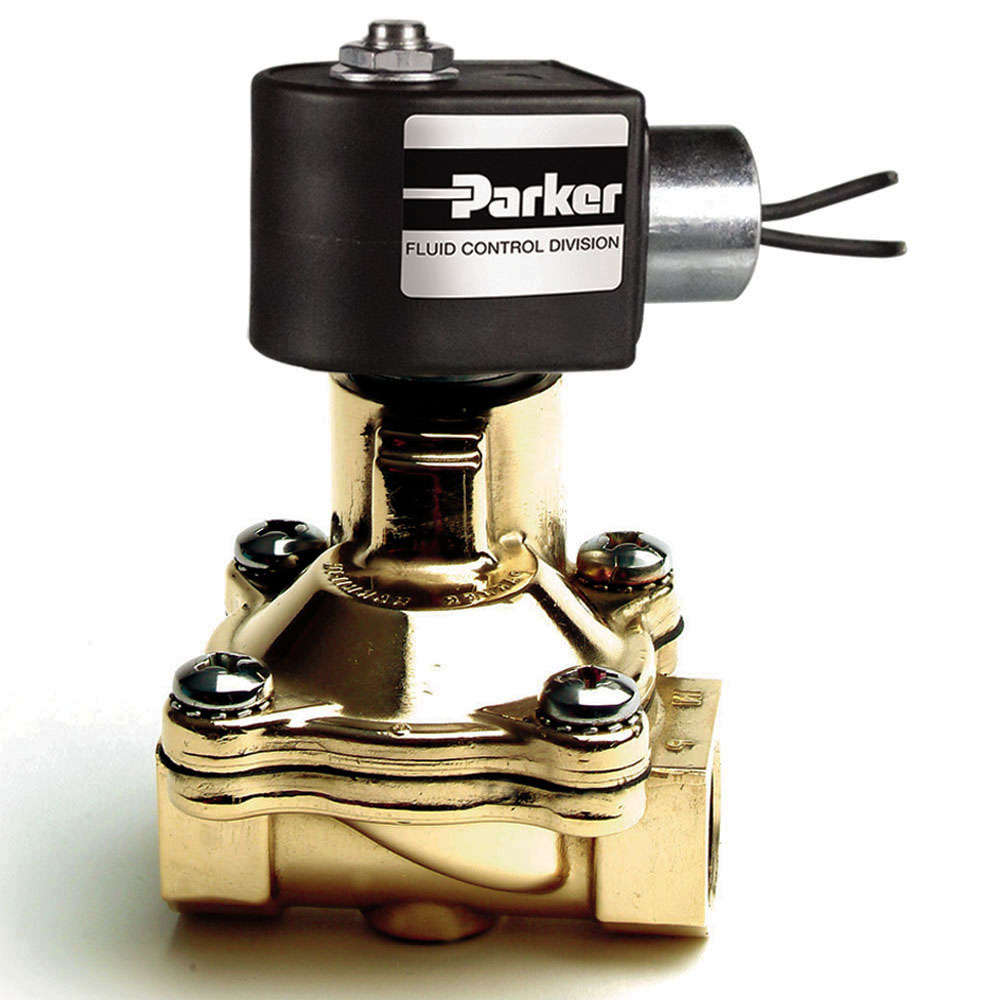

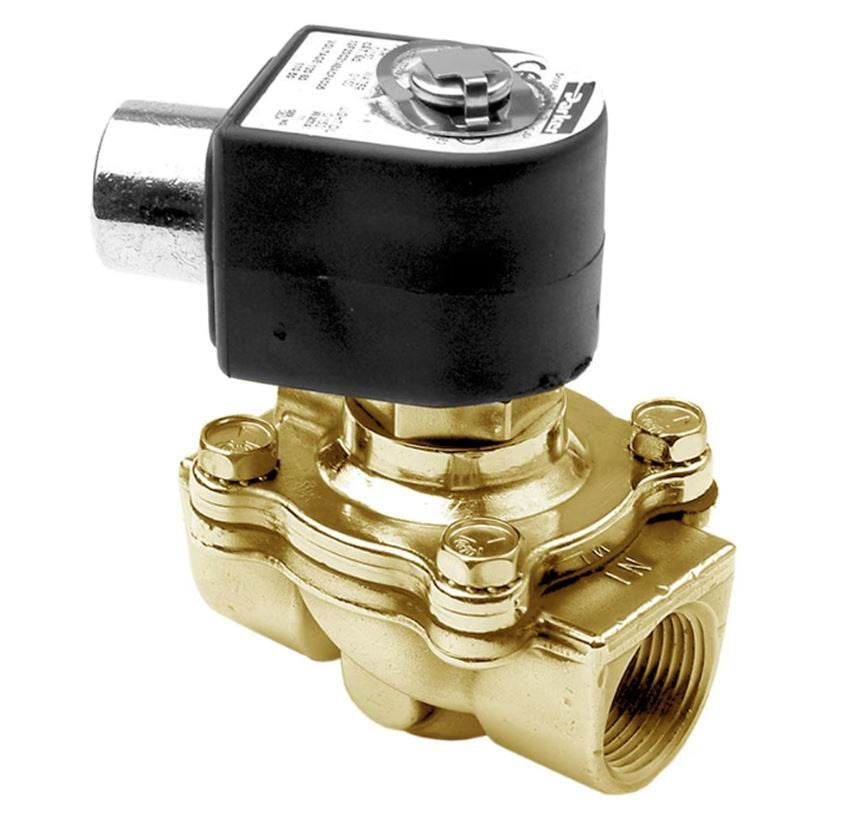

Parker 08F23C2140A3F4C80 2-Way Solenoid Valve

Product Description

The Parker 08F23C2140A3F4C80 is a reliable 2-way solenoid valve designed for various applications with air, liquids, and gases. It operates in a normally closed state, requiring a twenty-four volt direct current input. This valve ensures robust performance with a brass body and NBR seals, suited for a maximum pressure differential of forty psi.

• Body Material: Brass
• Seal Material: NBR
• Operating Voltage: 24 VDC

Product Highlights

This solenoid valve is ideal for general-purpose use, making it suitable for a wide range of environments.

Product Information

Standard Information

• Valve Type: 2-Way
• Function: Normally Closed

Technical Specifications

• Series: Gold Ring Series
• Port Size: 1/2 inch
• Input Voltage: 24.0 VDC
• Orifice Size: 5/8 inch
• Main Flow Coefficient: 4.0 Cv
• Power Consumption: 11.5 W
• Maximum Pressure Differential: 40 psi
• Number of Ports: 2
• Actuation Type: Direct Lift
• Media: General Purpose
• Port Type: NPT
• Minimum Pressure Differential: 0.0 psi
• Minimum Fluid Temperature: 0
• Maximum Fluid Temperature: 150.0 °F
• Coil Type: 1/2 NPT Conduit w/ Leads (Incl. Ground Lead)
• Insulation Class: Class F
• Ingress Protection Rating: NEMA 4,4X
• Maximum Ambient Temperature: 77.0 °F
• Specifications Met: UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC
