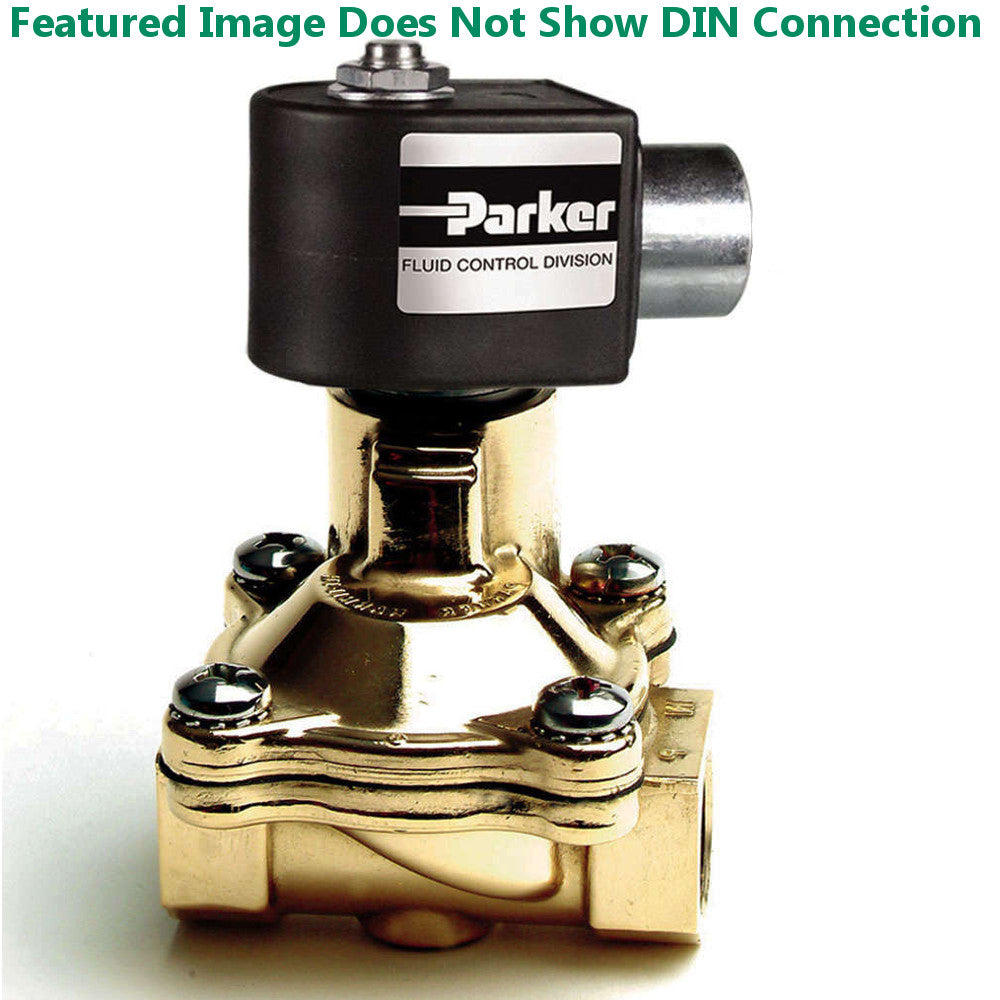

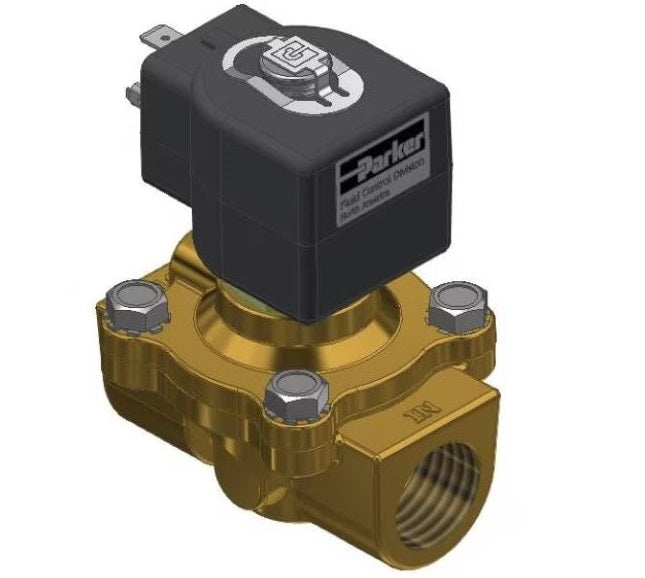

PARKER 08F22C2140A3FPH80 Parker 2-Way Solenoid Valve

Product Description

The Parker 08F22C2140A3FPH80 is a 2-way solenoid valve suitable for general-purpose tasks with air, liquids, and gases. This valve has a normally closed design, ideal for stopping flow until the coil is activated. Crafted from brass with NBR seals, it ensures durability and reliability in various environments. This valve fits a 1/2 inch NPT port and operates with a center diaphragm and DIN Form A coil type. It is part of the Gold Ring Series.

• Valve Type: 2-Way, Normally Closed
• Port Size: 1/2 inch NPT
• Body Material: Brass with NBR Seals

Product Highlights

This valve offers reliable performance in controlling the flow of various media. It is suitable for applications requiring strict control over liquids and gases, ensuring safety and efficiency.

Product Information

Standard Information

• Model: 08F22C2140A3FPH80
• Brand: PARKER

Technical Specifications

• Series: Gold Ring Series
• Function: Normally Closed
• Input Voltage: 24.0 VDC
• Seal Material: NBR
• Orifice Size: 5/8 inch
• Flow Coefficient: 4.0 Cv
• Power Consumption: 11.5 W
• Coil Type: DIN 43650A / ISO 4400
• Maximum Fluid Temperature: 150.0 °F
• Maximum Pressure Differential: 125 psi (DC)
• Minimum Pressure Differential: 5.0 psi
• Ingress Protection Rating: NEMA 4X
• Installation: IOM 7321
