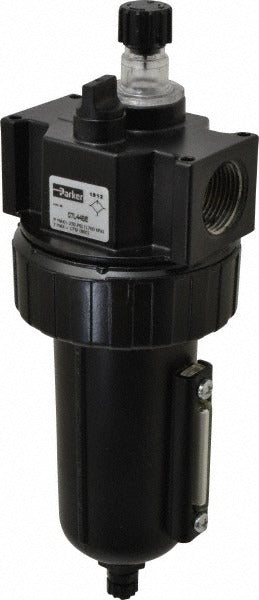

Parker 07L44BE Air Lubricator 90 Cfm 3/4 Inch Npt

Product Description

The PARKER 07L44BE is a standard mist-type compressed air lubricator designed to deliver a controlled oil mist into a pneumatic system downstream of a filter and regulator. Built for inline installation in FRL (filter-regulator-lubricator) assemblies, it uses a 3/4-inch NPT port and is rated for up to 90 CFM of airflow. The zinc body and metal bowl are built for industrial service environments. A sight glass is included for visual oil-level monitoring without disassembly. A manual drain allows periodic bowl servicing. Nitrile seals provide compatibility with petroleum-based lubricating oils. This unit is part of the Parker Series 07L and supports modular connection for inline FRL stacking.

The 07L44BE is suited for industrial and commercial compressed air systems where downstream pneumatic tools, actuators, or valves require continuous lubrication. It is typically installed by industrial maintenance technicians or pipefitters as part of a point-of-use air preparation assembly. The unit handles operating temperatures down to 32 degrees F, making it appropriate for indoor compressed air drops in conditioned or semi-conditioned spaces. Its modular connection feature allows it to be joined directly to compatible Parker Series 07L filter and regulator bodies without additional pipe fittings between components.

Key Features

• Mist-type lubrication delivers consistent oil dispersion into the airstream at flow rates up to 90 CFM
• 3/4-inch NPT inlet and outlet for direct connection to standard compressed air piping
• Zinc body construction with metal bowl for durable industrial service
• Integrated sight glass allows visual oil-level inspection without removing the bowl
• Manual drain for controlled oil drainage and bowl servicing
• Modular connection supports inline stacking with compatible Series 07L filter and regulator units
• Nitrile seals rated for petroleum-based lubricants

Compatibility

Designed for use in Parker Series 07L FRL assemblies with modular connection capability. Compatible with systems requiring a 3/4-inch NPT inline lubricator rated for up to 90 CFM. Consult the Series 07L product line documentation to confirm modular pairing with specific filter and regulator bodies.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or pipefitter. Depressurize and lock out the compressed air supply before installing or servicing this lubricator. The unit should be mounted vertically with the bowl pointing downward and installed downstream of the filter and regulator in the FRL assembly. Use appropriate thread sealant on NPT connections and verify all fittings are leak-free before returning the system to service.
