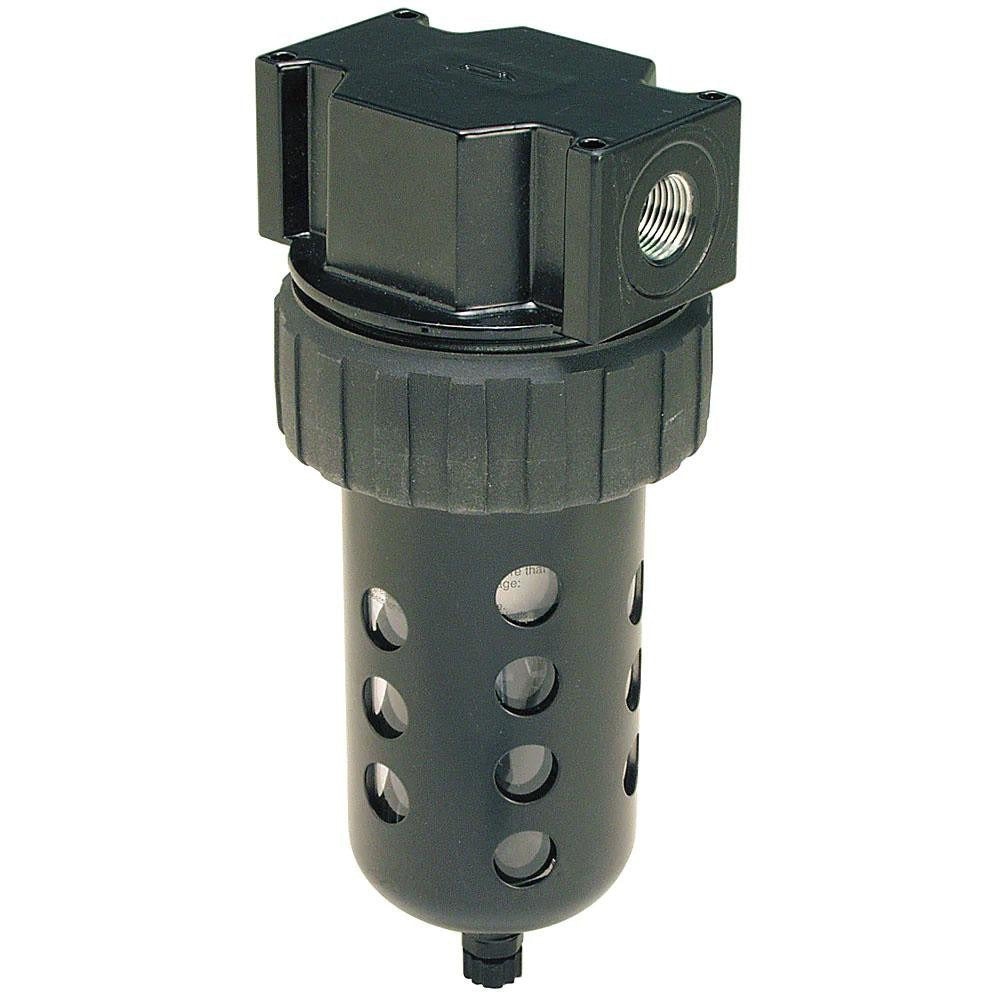

Parker 07F42AC Compressed Air Filter 3/4 Npt 145 Scfm

Product Description

The PARKER 07F42AC is a standard compressed air filter designed to remove particulate contamination from compressed air lines. Fitted with a 3/4 inch NPT port and NPT end connections, it delivers a rated flow capacity of 145 standard cubic feet per minute (SCFM) at a filtration level of 40 microns. The unit features a metal bowl guard for durability in demanding shop and industrial environments. It supports modular connection, allowing it to be ganged with other filter-regulator-lubricator components in a filter station assembly. This filter is installed by HVAC technicians, industrial maintenance mechanics, and pneumatic system specialists.

The 07F42AC is suited for use in compressed air distribution systems where particulate filtration is required upstream of pneumatic tools, control valves, actuators, or other air-operated equipment. The 3/4 inch NPT port size makes it appropriate for medium-flow compressed air lines in light industrial, commercial mechanical rooms, and manufacturing facility applications. Its modular connection design supports integration into multi-stage filtration and conditioning assemblies.

Key Features

• 40-micron filtration rating removes particulate from compressed air supply lines
• 3/4 inch NPT end connections for straightforward threaded pipe installation
• Rated flow of 145 SCFM supports medium-flow pneumatic system demand
• Metal bowl guard provides mechanical protection for the filter bowl
• Modular connection design allows inline pairing with regulators and lubricators

Compatibility

Designed as an OEM-style replacement or new-installation compressed air line filter for 3/4 inch NPT threaded compressed air systems requiring 40-micron particulate filtration.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system piping. Depressurize and lock out the compressed air supply before installing or servicing this filter. Apply appropriate thread sealant to NPT connections per local piping codes. Ensure airflow direction matches the directional markings on the filter body, and verify that system operating pressure does not exceed the filter's rated pressure before returning the system to service.
