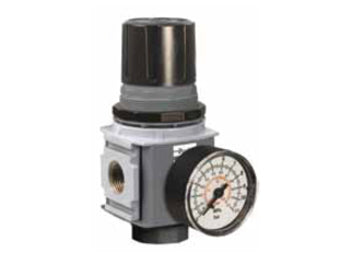

Parker 050P32RB94BNGP Global Modular Compact Regulator with Gauge

Product Description

The Parker 050P32RB94BNGP is a global modular compact regulator featuring a 125 PSI gauge. This Series P32R regulator has a nominal size of one half inch and NPT connection. It is made of an aluminum body with an ABS body cap. The design allows for mounting on a plastic panel and provides a flow rate of one hundred forty-two SCFM. Compliance with OSHA, CE, RoHS, and Ex ATEX industry standards makes it suitable for various applications.

• Integral ports of one quarter inch, three eighths inch, or one half inch (NPT, BSPP, and BSPT)
• Secondary aspiration plus balanced poppet for quick response and accurate pressure regulation
• Designed for standard reverse flow

Product Highlights

This regulator offers versatile connectivity and efficient pressure management.

Product Information

Standard Information

• Item Name: Global Modular Compact Regulator With 125 PSI Gauge
• Series/Model: Series P32R

Technical Specifications

• Nominal Size: 1/2 IN
• Pressure Rating: 150 PSI
• Connection: NPT
• Flow Rate: 142 SCFM
• Element: 5 MICRON
• Mounting: Plastic Panel
• Temperature Rating: -13 To 125 DEG F
• Length: 2.36 IN
• Width: 2.36 IN
• Height: 5.4 IN
• Material: Aluminum Body, ABS Body Cap
• Industry Standards: OSHA Compliant, CE Certified, RoHS Compliant, Ex ATEX
