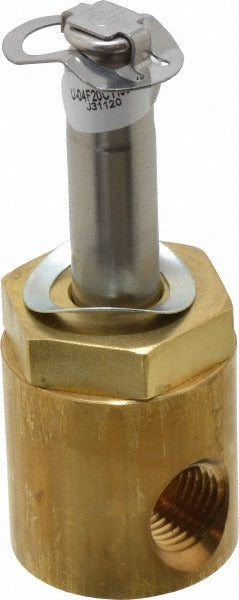

Parker 04F20C1106A1F Solenoid Valve 1/4 Inch Npt

Product Description

The PARKER 04F20C1106A1F is a direct-acting, normally closed solenoid valve designed for controlling the flow of fluids, gases, and light oils in industrial and commercial systems. Built with a brass body and NBR seal, it accepts a 1/4 inch NPT port and handles a maximum working pressure of 150 psi. It operates across multiple voltage configurations including 12Vdc, 24Vdc, 120Vdc, 24/60Vac, 120/60 to 110/50Vac, and 240/60 to 220/50Vac, making it adaptable to a wide range of control circuit setups. This valve is rated at 9.5 watts and carries CSA, UL, and NEMA 4X certifications. It is installed by licensed HVAC technicians, pipefitters, and industrial maintenance professionals.

This valve is suited for residential and commercial applications where automated on/off fluid or gas control is required. Typical installations include HVAC systems, pneumatic control lines, light oil circuits, and general process control piping. The normally closed default state means the valve blocks flow until energized, which is appropriate for fail-safe shutoff applications. With a minimum operating pressure differential of 0 psi, it can open under no-flow or low-pressure conditions without requiring a pressure difference to actuate.

Key Features

• Direct-acting design operates at 0 psi minimum pressure differential — no upstream pressure required to open
• Brass body with NBR seal rated for fluids, gases, and light oils
• Multi-voltage coil compatibility: 12Vdc, 24Vdc, 120Vdc, 24/60Vac, 120/60 to 110/50Vac, 240/60 to 220/50Vac
• Maximum working pressure of 150 psi
• CSA Certified, UL Listed, and NEMA 4X rated for wet and wash-down environments
• Cv factor of 0.17 for precise flow sizing in low-flow applications

Compatibility

Designed as an OEM-style direct-acting solenoid valve replacement for 1/4 inch NPT normally closed valve applications in fluid, gas, and light oil service. Cross-references ASCO Number 8262G20. Note: solenoid coils are not included and must be ordered separately.

Installation Notes

Installation should be performed by a qualified technician in accordance with applicable NEC, IPC, or IFGC codes depending on the medium being controlled. De-energize the control circuit and shut off supply pressure before removing or installing the valve. Verify voltage compatibility between the coil and the control circuit before energizing. Coils are not included with this valve body and must be sourced and installed separately prior to commissioning.
