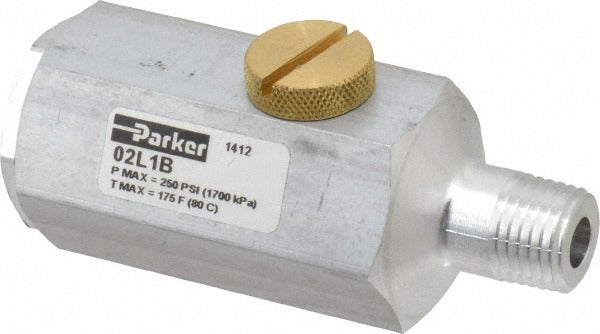

Parker 02L1B Inline Lubricator 250 Psi 32 Cfm

Product Description

The PARKER 02L1B is an inline pneumatic lubricator designed to deliver a controlled mist of oil to downstream air tools, cylinders, valves, and other pneumatic components. Constructed with an aluminum body, this lubricator operates at pressures up to 250 psi and supports airflow up to 32 CFM, making it well-suited for a range of light to medium-duty pneumatic systems. It measures 2.93 inches wide and 2.66 inches high and weighs 0.25 pounds. Licensed pneumatic system technicians and millwrights typically specify and install this unit as part of a filter-regulator-lubricator (FRL) assembly on compressed air lines.

The PARKER 02L1B is appropriate for use in compressed air distribution systems in industrial, commercial, and light manufacturing environments. It is installed inline on an air supply line to protect pneumatic tools and actuators from wear caused by insufficient lubrication. The BSP and NPT end connections make it adaptable to both metric and imperial threaded pneumatic lines, providing flexibility for system integration across a variety of existing installations.

Key Features

• Aluminum body construction for lightweight durability
• 250 psi maximum operating pressure
• 32 CFM maximum airflow capacity
• BSP and NPT end connections for broad thread compatibility
• Compact footprint: 2.93 inches wide, 2.66 inches high
• Lightweight at 0.25 pounds for easy inline mounting

Compatibility

Designed as an OEM-style inline lubricator for compressed air systems using BSP or NPT threaded connections rated to 250 psi and 32 CFM or less.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or pipefitter. Depressurize and lock out the compressed air supply before installing or servicing this lubricator. Verify that upstream system pressure does not exceed the 250 psi rating and that airflow demand is within the 32 CFM capacity. Follow applicable compressed air system codes and the equipment manufacturer guidelines for oil type and fill level.
